0850-0660 BARTH lococube mini-PLC PLC I/O Module - 10 Inputs, 9 Outputs, Digital, PWM, Solid State, For Use With STG-660, CANOpen

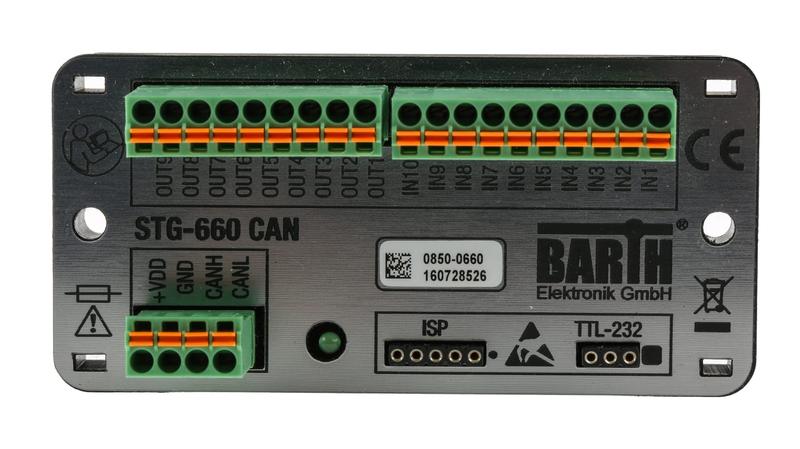

STG-660 CAN - Mini-PLC_x000D_ A professional range of STG-660 CAN Mini-PLC from Barth. The STG-660 Mini-PLC has extended the established Barth CAN Mini-PLC series with an excellent open source hardware concept. These Mini-PLC’s provide hardware-oriented microcontroller programming at lowest current consumption and the well-known small form factor. Various network components can be connected to the Mini-PLC through the CAN bus, such as; displays & CAN sensors. Both inputs and outputs feature highly integrated and rugged protection circuits to operate the Mini-PLC in harsh environments. The STG-660 does not need any peripheral components to operate and all models are highly reliable and excellent quality._x000D_ Small and universal CAN Logic Controller_x000D_ Programmable with all PIC18® Compiler_x000D_ 6 analog Inputs 0..30 VDC, 12 bit ADC_x000D_ 4 digital Inputs up to 10 kHz_x000D_ 8 Power Outputs up to 1.5 A_x000D_ 1 Power PWM Output 2 A/1 to 32 kHz_x000D_ 1 CAN Interface_x000D_ Reliable Solid-State Outputs_x000D_ Fail Safe Oscillator_x000D_ Programmable Status LED_x000D_ TTL-232/USB Connection to PC_x000D_ Wide Operating Voltage Range; 7 to 32 VDC_x000D_ Wide Operating Temperature Range; -40 to +60°C_x000D_ Vibration resistant and rugged Sealing_x000D_ Note_x000D_ A product is NRND (Not Recommended for New Designs) is in production and available, with no obsolescence scheduled. However, we recommend against using these parts for new designs because there are better or more economical alternatives._x000D_ Barth Mini-PLC
