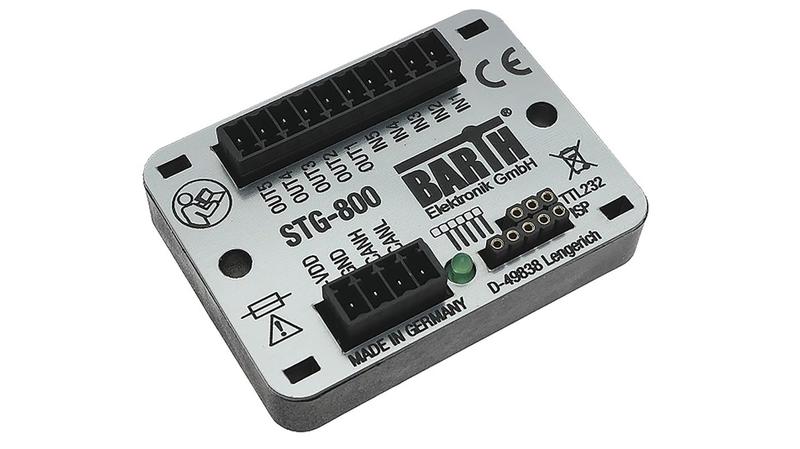

0850-0800 BARTH lococube mini-PLC PLC I/O Module - 5 Inputs, 9 Outputs, Digital, PWM, Solid State, For Use With STG-800, CANOpen

BARTH Logic Module_x000D_ The BARTH STG-800 CAN panel mount Mini-PLC has a powerful 32-bit ARM Cortex core. It provides an outstanding graphical programming capability at the lowest current consumption and small form factor. The automotive-qualified CAN2.0A/B/CANopen interface can operate in noisy environments and allows the connection of various network components to the Mini-PLC. It has three analogues inputs that can vary from 0VDC to 30VDC. This logic module has four solid-state power outputs up to 1.5A and 1PWM power output. This logic module can be easily programmed using miCon-L software that does not require a difficult programming language._x000D_ Features and Benefits_x000D_ Open source programming option_x000D_ Wide operating voltage that ranges between 7VDC and 32VDC_x000D_ Operating temperature ranges between -40°C and 70°C_x000D_ Vibration resistant and rugged sealing_x000D_ Comprehensive fail-safe functions_x000D_ Tiny and super flat CAN logic controller_x000D_ Pulse and frequency counter input is 40μ seconds_x000D_ TTL-232 3.3V Interface_x000D_ Applications_x000D_ Industrial automation_x000D_ Automotive technology_x000D_ Maritime technology_x000D_ Technical education
