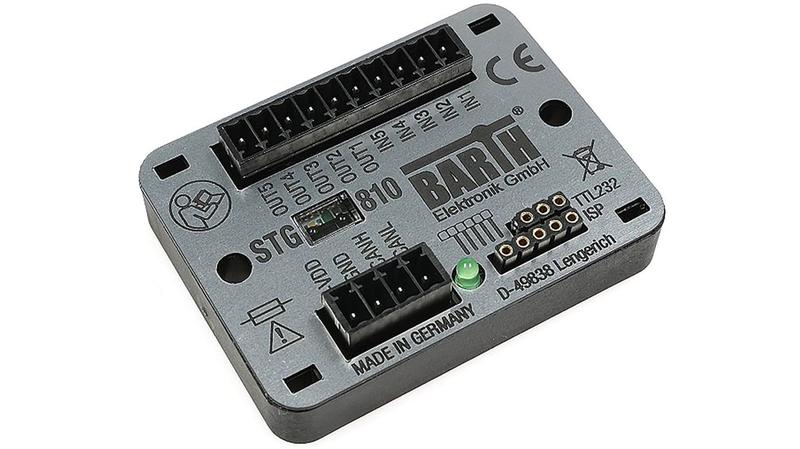

0850-0810 BARTH lococube mini-PLC PLC I/O Module - 5 Inputs, 9 Outputs, Digital, PWM, Solid State, For Use With STG-810, CANOpen

STG-810 ARM Mini-PLC_x000D_ Barth professional range of STG-810 CAN Mini-PLC with a powerful 32-bit ARM Cortex core. The STG-810 Mini-PLC features a rugged CAN/CANopen interface with intuitive graphical programming capability. These Mini-PLC’s provide hardware-oriented microcontroller programming at lowest current consumption in a small form factor. To program the STG-810 CAN Mini-PLC in the open source way the KEIL μVision software suite is required.(http://www2.keil.com/stmicroelectronics-stm32/mdk)_x000D_ The 32-bit ARM Cortex core provides two high-speed events, pulse and frequency counter inputs and one 16-bit PWM output combined with a precise internal voltage reference for the 12-bit analogue inputs. The automotive-qualified CAN2.0A/B/CANopen interface is able to operate in noisy environments and allows connection of various network components to the Mini-PLC._x000D_ Features and Benefits_x000D_ • IrDA/SIR Interface_x000D_ • Tiny and super-flat CAN Logic Controller_x000D_ • High-Performance 32-Bit ARM Cortex_x000D_ • 3 analogue Inputs 0 V dc to 30 V dc, 12-bit ADC_x000D_ • Event Counter Input 25 kHz_x000D_ • Pulse and Frequency Counter Input 40μs_x000D_ • 4 Solid-State Power Outputs up to 1.5 A_x000D_ • 1 Power PWM Output 16-Bit 1 Hz to 25 kHz_x000D_ • CAN 2.0A/B and SAE J1939 Interface_x000D_ • CANopen Interface (Open Source)_x000D_ • Comprehensive Fail-Safe Functions_x000D_ • TTL-232 3.3V Interface_x000D_ • Open Source C Programming_x000D_ • Wide Operating Voltage Range 7 V dc to 32 V dc_x000D_ • Wide Operating Temp. Range -40 to +70°C_x000D_ • Vibration resistant and rugged Sealing_x000D_ Barth Mini-PLC
