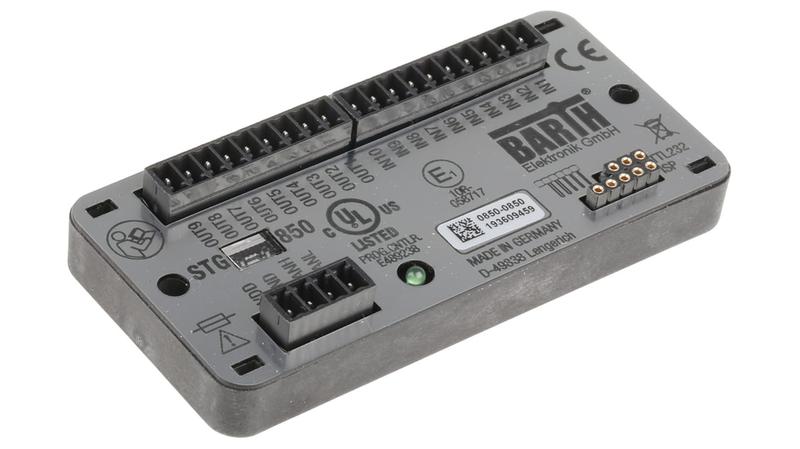

0850-0850 BARTH lococube mini-PLC PLC I/O Module - 10 Inputs, 9 Outputs, PWM, Solid State, For Use With STG-850, CANOpen

BARTH Logic Module_x000D_ The BARTH STG-850 CAN panel mount logic module extends the well-established Mini-PLC series with the most powerful 32-bit ARM Cortex Core and IrDA interface. It features rugged CAN/CANopen, IRDA/SIR and TTL-232 3.3V In connectivity with Open Source C programming capability at the lowest current consumption and the well-known small form factor. It has six analogues inputs, which can vary from 0VDC to 30VDC and four digital inputs. This logic module has eight power outputs up to 1.5A and 1PWM power output._x000D_ Features and Benefits_x000D_ Tiny and super flat CAN logic controller_x000D_ Operating temperature ranges between -40°C and 70°C_x000D_ Event counter input is 25kHz_x000D_ Pulse and frequency counter input is 40μ seconds_x000D_ Supply voltage ranges between 7VDC and 32VDC_x000D_ Applications_x000D_ Industrial automation_x000D_ Automotive technology_x000D_ Maritime technology_x000D_ Test and control systems_x000D_ Technical education_x000D_ White goods
