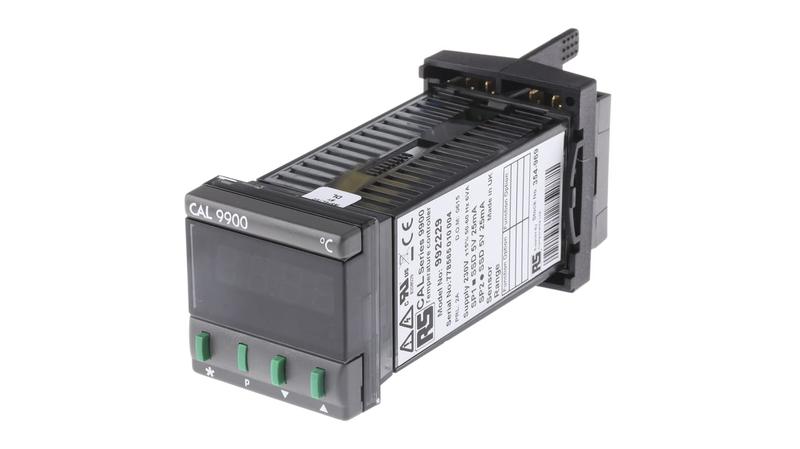

992.22C CAL 9900 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 2 Output SSD, 230 V ac Supply Voltage

CAL 9900 Temperature Controller_x000D_ The CAL 9900 series PID temperature controller is a microcontroller based unit for precise control with easy installation, suitable for support both heating and cooling applications. PID controllers offer proportional control over basic on/off controls allowing for a far more versatile and application friendly process control._x000D_ The 9900 series from CAL offer push to tune as well as auto tuning algorithms for fast accurate set up with the ability to tune all five control parameters automatically. The auto tune function within the controller allows the unit to tune during warm up. Alternatively, the Push-to-Tune function within the controller allows for tuning in more difficult applications. This allows tuning to be achieved even when the thermal conditions are substantially different._x000D_ Built in standard 1/16 DIN size, the 9900 series PID controllers are easy to mount in any DIN system and are suitable for use with DIN adapters to fit 1/8 and 1/4 DIN units. Along with its industry standard dimensions, the 9900 series are all IP54 rated suitable for use in areas with average levels of dust as well as being protected from water spray from any direction._x000D_ The four large control buttons teamed with the units large LED display make for an easy to use, easy to install and easy to commission unit offering reliability as well as easy in almost any application._x000D_ • 1/16 DIN (48 x 48mm) unit for easy installation_x000D_ • Application versatility with heat-cool strategy_x000D_ • Auto-tune or Push-to-tune at setpoint_x000D_ • 5A output relay on main control output_x000D_ • Dual output versions can plug into 11-pin base_x000D_ The 992.22C features two SSD outputs and uses a 230 V ac power supply._x000D_ CAL Temperature Controllers
