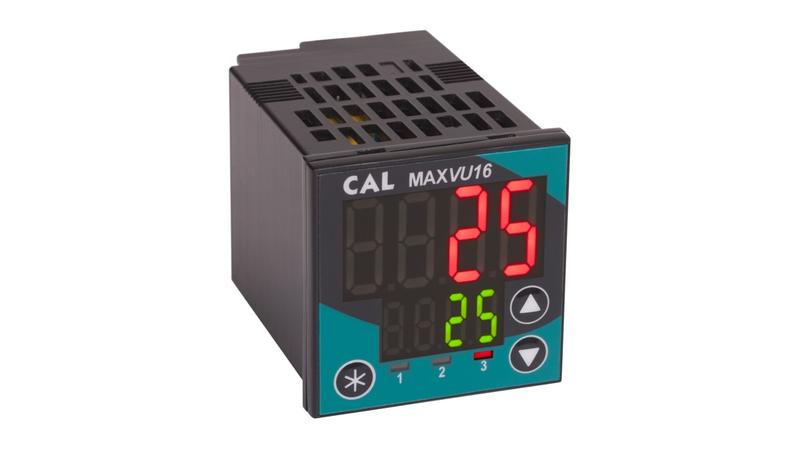

MV160LARR021U0 CAL MAXVU16 1/16 DIN PID Temperature Controller, 48 x 48mm 1 Input, 3 Output Relay, SSR, 24 V ac/dc Supply Voltage

CAL Temperature Controller_x000D_ The CAL MAXVU16 series temperature controller has a supply voltage range of 24VAC/DC. This controller has a width of 48mm and a height of 48mm (1/16 DIN) device. The controller has one SSR output and other two relay output. It is an easy-to-install device that is fast to program with improved display visibility. This provides an affordable solution for applications where primary temperature control functions such as heat only or heat/cool are needed. Typical applications include packaging processes such as sealers and many more._x000D_ Features and Benefits_x000D_ 2 process alarms- high/low, deviation or band_x000D_ 2 x 4 digit display and 3 output status LEDs_x000D_ 3 button operation_x000D_ Front panel configuration or PC configuration software_x000D_ Good performance in sunlight_x000D_ High visibility 18mm display (10.2mm lower display)_x000D_ Quick set-up menu with top 10 configuration parameters_x000D_ RS485 Modbus RTU communications_x000D_ Thermocouple, PT100 or linear DC sensor input_x000D_ User can set-up the controller in 60 seconds_x000D_ Wide viewing angle_x000D_ Certifications_x000D_ CE certified_x000D_ EN61010-1_x000D_ EN61326 (susceptibility and emissions)_x000D_ Installation category II_x000D_ IP65 rated_x000D_ UL61010-1 pollution degree 2
