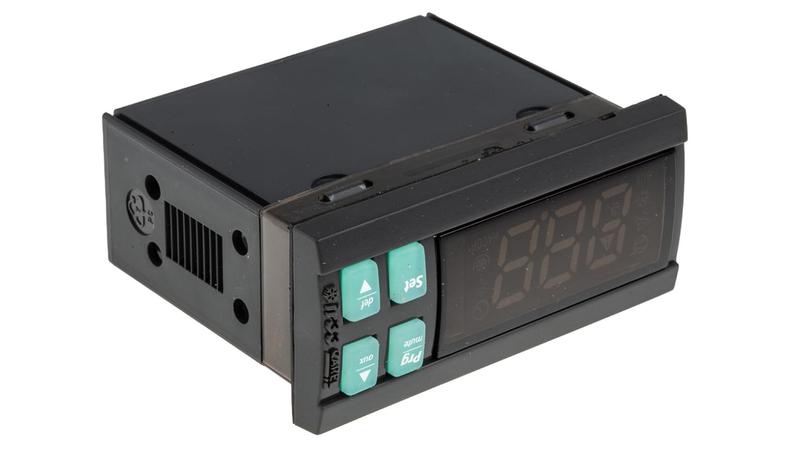

IR33S0EN00 Carel IR33 On/Off Temperature Controller, 76.2 x 34.4mm, 230 V ac Supply Voltage

CAREL ON/OFF Temperature Controller_x000D_ The CAREL ON/OFF temperature controller is an IR33 series invention with 1 relay output for use in static refrigeration units. It is specifically used for the refrigeration installer as they enable selection from a range of pre-loaded applications, eliminating the need to program the controller parameters. This controller then just needs to be wired up and installed in the panel. The controller has up to 3 NTC inputs. It is housed in a compact panel mounting enclosure and is powered from 115VAC to 230VAC. It can be connected to a network for monitoring and programming using the optional RS-485 serial interface._x000D_ The CAREL IR33 series temperature controller has a supply voltage rating of 115VAC to 230VAC. This controller has a width of 34.4mm and a height of 76.2mm. It has one relay output for use in static refrigeration units. The controller has up to three NTC inputs. It is specifically used for the refrigeration installer as they enable selection from a range of pre-loaded applications, eliminating the need to program the controller parameters. This controller then just needs to be wired up and installed in the panel. It is housed in a compact panel mounting enclosure. It can be connected to a network for monitoring and programming using the optional RS-485 serial interface._x000D_ Features and Benefits_x000D_ 16A compressor output_x000D_ 4 pre-loaded configurations_x000D_ Ambient temperature ranges between 0°C and 50°C_x000D_ Front panel mount system_x000D_ Infrared receiver and buzzer_x000D_ It has 76.2mm length and 34.2mm width_x000D_ No programming required_x000D_ Plug-in terminals_x000D_ Real time clock and HACCP function_x000D_ Various relay output configurations available_x000D_ Certifications_x000D_ CE certified_x000D_ IP65 rated
