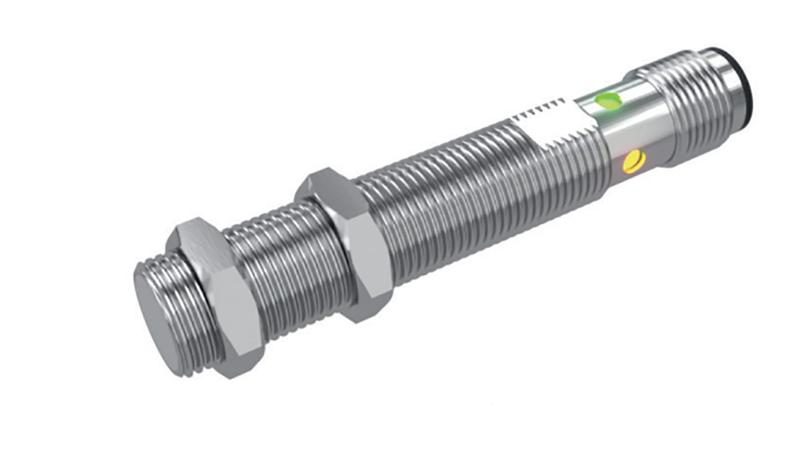

ICB18S30N14A2IO Carlo Gavazzi Inductive Barrel-Style Proximity Sensor, M18 x 1, 14 mm Detection, PNP & NPN Output, 10 → 36 V dc,

A complete family. Available in M12, M18 and M30 robust nickel-plated brass housings with an operating distance of 4 to 22 mm_x000D_ Less machine downtime. Lower risk of mechanical damage thanks to the extended operating distance_x000D_ Easy to install. ICB sensors have a milled section for wrench grip and two different thread lengths. The user can choose between 2 m PVC cable and M12-disconnect plug versions_x000D_ High precision. The onboard advanced microcontroller ensures better stability with respect to environmental influences, with highly reliable repeatable measurements between -25 and +70°C_x000D_ The output can be operated either as a switching output or in IO-Link mode_x000D_ Fully configurable via IO-Link v1.1. Electrical outputs can be configured as PNP/NPN/Push-pull, normally open or normally closed_x000D_ Timer functions can be set, such as switch-on and switch-off delay_x000D_ Adjustable sensing distance and hysteresis: sensing distance can be set to 33%, 50%, 75% or 100% of the maximum sensing distance_x000D_ Temperature monitoring: over or under-run temperature alarms can be set_x000D_ Applications_x000D_ Non contact detection of metal objects in general position-sensing and presence-sensing in industrial applications_x000D_ Particularly suitable for rotational speed monitoring thanks to the high operating frequency
