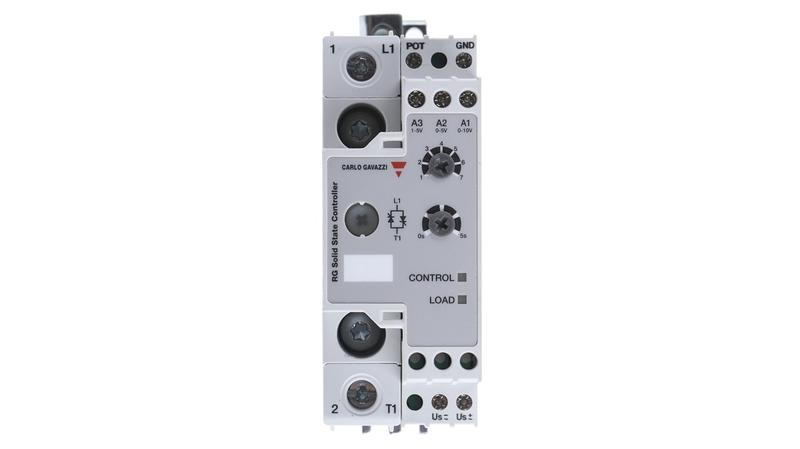

RGC1P23V30ED Carlo Gavazzi Power Controller

Carlo Gavazzi SSR Power Controller_x000D_ The Carlo Gavazzi RGC1P series SSR power controller has a solid-state contactor supplied with the integrated heatsink. It required analogue input and a current rating of 30A. It is used to control the output power of single-phase loads with an analogue control input. It has selectable switching modes regulated with a knob on the front of the controller. This also allows phase angle control, full-cycle control, advanced full-cycle control, and soft starting. The output of the power controllers is protected against overvoltages by an integrated varistor across the output._x000D_ Features and Benefits_x000D_ 100kA short circuit current rating_x000D_ 1-pole analogue switching AC solid-state contactors_x000D_ 2 front LEDs indicate the status of load and control_x000D_ Control inputs: 4-20 mA, 0V-5V, 1V-5V, 0V-10V, external potentiometer_x000D_ DIN-rail or panel mounting_x000D_ Integrated heatsink_x000D_ Integrated varistor protection on output_x000D_ Rated operation current up to 63AAC_x000D_ Rated operational voltage up to 660VAC_x000D_ Selectable modes of operation are Phase angle, full-cycle x1, x4 or x16, advanced full-cycle specific for short wave infrared heaters and soft starting for limiting inrush current of loads having a high-temperature coefficient_x000D_ Certifications_x000D_ CE certified_x000D_ cULus approved
