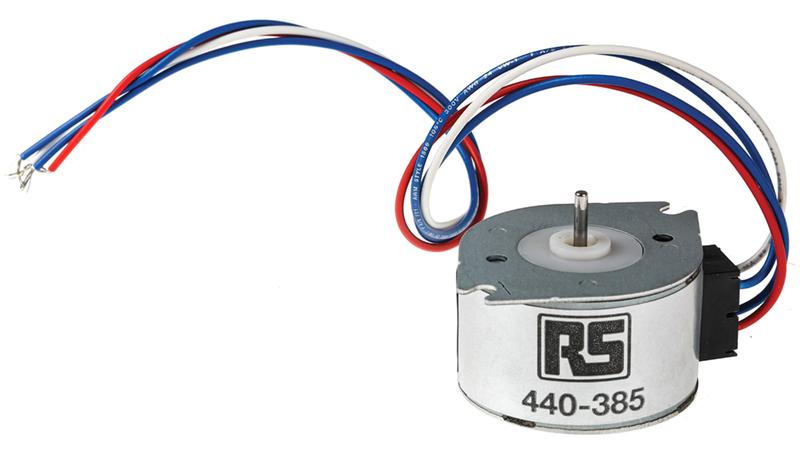

82510001 Crouzet 820000 Reversible Synchronous AC Motor, 2.7 W, 2 Phase, 24 Pole, 230 → 240 V

Single Voltage, Reversible_x000D_ Speed of Synchronous motor = 60 x f (in Hz)/P,Where P = pairs of poles_x000D_ Ideally suited for time driving in instrumentation, machine and process control_x000D_ Chosen for the differing torque capabilities ranging from 12mNm up to 106mNm. Suitable for higher torque application than the dual voltage version_x000D_ Designed for operation from a 220-240Vac. supply, but synchronous speed will be maintained to a much lower voltage, with a loss of working torque_x000D_ Note_x000D_ For phasing capacitors please see stock number 210-500 for example_x000D_ AC Synchronous Motors_x000D_ These synchronous motors are for direct driving from an a.c. supply. Ideally suited for time driving in instrumentation, machine and process control. The smaller units can be directly connected to the synchronous gearboxes (typical stock no. 332-868 etc).
