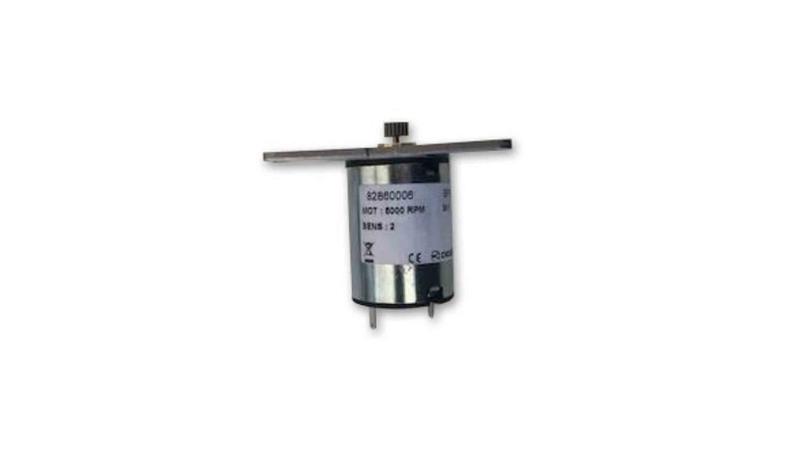

82860006 Crouzet Geared, 3 W, 24 V, 30 mNm, 3700 rpm, 8mm Shaft Diameter

32 & 42mm Diameter Motors & Gearboxes_x000D_ Low to medium power dc. motors fitted with a square mounting flange, centring bush and drive pinion. This allows simple and quick attachment to a 65mm square gearbox. All motors have sintered bronze bearings lubricated for life_x000D_ 32mm diameter motors have built-in interference suppression, whilst the 42mm diameter motors have replaceable motor brushes (stock no. 320-613)_x000D_ Gearboxes have metal end plates, with a plastic body between and metal gears. The user can select the appropriate combination of motor voltage, power and gearbox output speed which meets their requirements_x000D_ Gearbox dimensions: height 65mm x width 65mm, shaft diameter 8mm_x000D_ Note_x000D_ For applications where stall conditions may occur, it is recommended that a current limiter is fitted to this combination._x000D_
