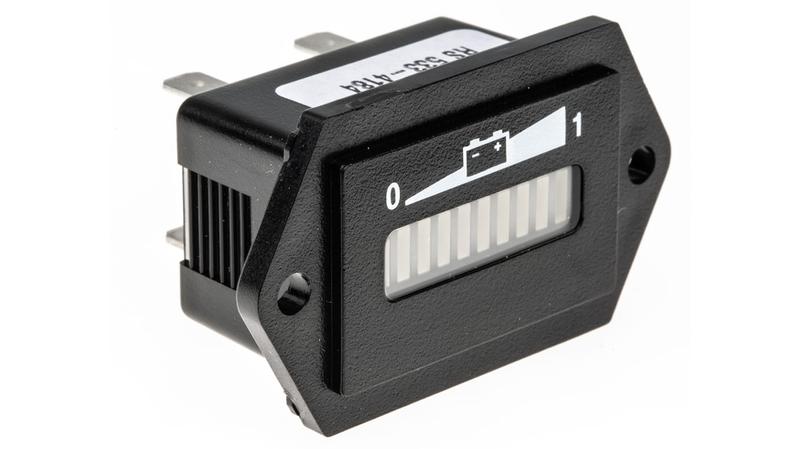

906T24JWDGN Curtis Digital Voltmeter, LED Display

Curtis Battery Fuel Gauge_x000D_ The Curtis 24VDC LED battery meter is an inexpensive, one-piece, easy to install battery fuel gauge. It is completely solid-state and provides a reliable, accurate, and easy to read display of battery state-of-charge. It has two reset methods Open Circuit Reset (OCR) upon reconnection to the battery when cell voltage =2.09V and High Voltage Reset (HVR)when unit measures 2.35V/cell for 6 continuous minutes. The model 906 is available in 6-panel mount packages and a printed circuit board mounted module for custom dash panel applications._x000D_ Features and Benefits_x000D_ 10-bar LED displays the state-of-charge successively_x000D_ 10kohm impedance_x000D_ Tricolour LED array_x000D_ 70% depth of discharge, a flashing LED signals an ’energy reserve’ alert_x000D_ 80%, alternately flashing LEDs provides an ’empty’ status warning_x000D_ Key switch activated LED display (state-of-charge is monitored as long as 906 is connected to battery)_x000D_ Model 906 is compact and easily installed in panel cut-outs as small as 36.8mm x 24.1mm, with as little as 35mm behind panel clearance needed, see dimensions of various case styles_x000D_ Principal circuits are integrated in a single chip for long-life reliability_x000D_ Recognizes improperly charged battery_x000D_ Applications_x000D_ Commercial cleaning equipment_x000D_ Electric bicycles_x000D_ Electric marine motors_x000D_ Golf cars_x000D_ Medical devices_x000D_ Mobility aids
