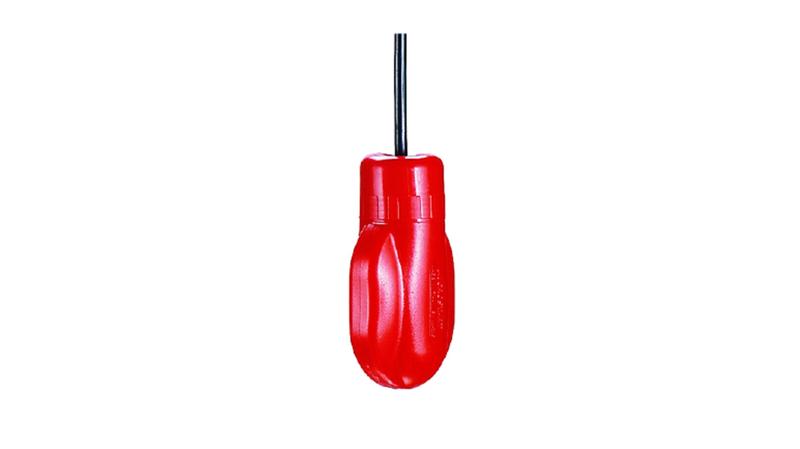

MS20A Cynergy3 MS Series Cable Mount HDPE Float Switch, Float, 5m Cable, SPNO, 250V ac Max, 24V dc Max

Cynergy3 MS Series Float Switches_x000D_ The Cynergy3 MS series of float switches are designed for large tanks, cisterns or reservoirs, and can be installed on submersible pumps. The MS float switches are capable of reaching 100m in depth._x000D_ MS float switches come with a 5m PVC cable._x000D_ What is it made from?_x000D_ The flow switch case is made from blow-moulded HDPE (polyethylene). The unit is hermetically sealed. The cable is made from PVC and has a protective earth conductor. Part numbers ending with the letter “U” have PUR cables suitable for use in fuel oils._x000D_ What temperatures can it operate in?_x000D_ All MS float switches operate from 0°C to +45°C / +32°F to 113°F._x000D_ What contact types are there?_x000D_ The 5th digit of the part number represents the contact type:_x000D_ A - Normally Open (N/O)_x000D_ B - Nortmally Closed (N/C)_x000D_ C - Changeover (C/O)_x000D_ Approvals:_x000D_ MS float switches have UL, VDE and CENELEC approvals. Part numbers ending with a "W" are WRAS approved cable coverings._x000D_ Versions Available:_x000D_ (205-6910) MS10A_x000D_ (338-9801) MS20A_x000D_ (338-9794) MS10B_x000D_ (869-7609) MS20C_x000D_ (379-4001) MS10AW_x000D_ (379-4017) MS10BW _x000D_ Sensata Cynergy3 Float Switch, Direct Load, 10 Bar - MS Series - MS20A_x000D_ Use this float switch from Sensata Cynergy3 to control liquid levels in large tanks, cisterns and reservoirs. It can also be installed on a submersible pump to operate at depths up to 100 metres. This hardwearing switch is made of hermetically sealed, blow-moulded polyethylene (PE). It's supplied with a 5m polyvinyl chloride (PVC) cable, making it a versatile solution that's simple to install. It operates via a NO (normally open) electrical circuit and can be used to turn off a pump when liquids reach a preset level._x000D_ Features and Benefits_x000D_ • Operating temperature range from 0°C up to +45°C makes this switch suitable for use in hot environments_x000D_ • Cable includes a protective earth cover to prevent electrical shocks_x000D_ • Able to operate at high pressures up to 10 bar_x000D_ How much operating life does this float switch have?_x000D_ This unit is built to last – it features a microswitch with an electrical life of 200,000 operations. In addition, it's been approved by third-party certifiers Underwriter Laboratories (UL) and Verband der Elektrotechnik (VDE) for reliability and safety.
