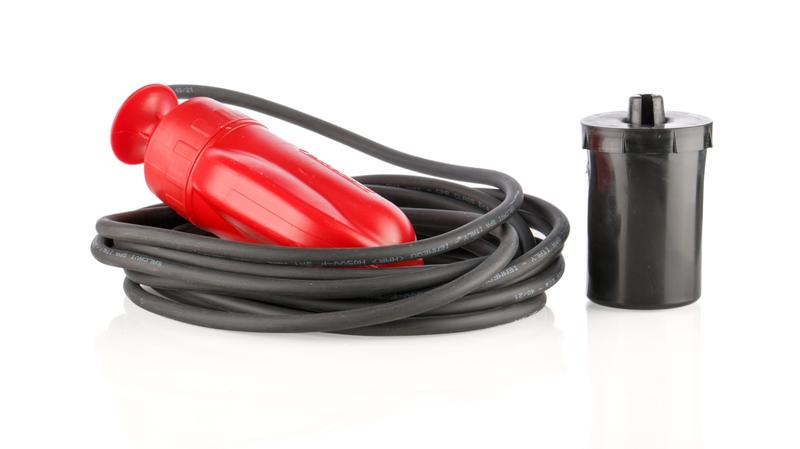

MS20C Cynergy3 MS Series Cable Mount Polypropylene Float Switch, Float, 5m Cable, NO/NC, 250V ac Max, 110V dc Max

Cynergy3 MS Series Float Switches_x000D_ The Cynergy3 MS series of float switches are designed for large tanks, cisterns or reservoirs, and can be installed on submersible pumps. The MS float switches are capable of reaching 100m in depth._x000D_ MS float switches come with a 5m PVC cable._x000D_ What is it made from?_x000D_ The flow switch case is made from blow-moulded HDPE (polyethylene). The unit is hermetically sealed. The cable is made from PVC and has a protective earth conductor. Part numbers ending with the letter “U” have PUR cables suitable for use in fuel oils._x000D_ What temperatures can it operate in?_x000D_ All MS float switches operate from 0°C to +45°C / +32°F to 113°F._x000D_ What contact types are there?_x000D_ The 5th digit of the part number represents the contact type:_x000D_ A - Normally Open (N/O)_x000D_ B - Nortmally Closed (N/C)_x000D_ C - Changeover (C/O)_x000D_ Approvals:_x000D_ MS float switches have UL, VDE and CENELEC approvals. Part numbers ending with a "W" are WRAS approved cable coverings._x000D_ Versions Available:_x000D_ (205-6910) MS10A_x000D_ (338-9801) MS20A_x000D_ (338-9794) MS10B_x000D_ (869-7609) MS20C_x000D_ (379-4001) MS10AW_x000D_ (379-4017) MS10BW _x000D_ Sensata Cynergy3 Cable Mount Float Switch, Polypropylene, 5 m - MS Series - MS20C_x000D_ To efficiently manage the level of liquid in large tanks, turn to this Sensata Cynergy3 float switch. It's suitable for cable mounting, so you can fix the float device in your tank and attach the accompanying 5 m cable to a power source. The casing is made from blow-moulded HDPE (high-density polyethylene) for durability and resistance to abrasion, ensuring a long service life. It's suitable for use at a depth of up to 100 m, making it a good choice for use with your submersible pumps and reservoirs._x000D_ Features and Benefits_x000D_ • PVC (polyvinyl chloride) cable sheath for durability and flexibility_x000D_ • Hermetically sealed casing to prevent water or air damage_x000D_ • Versatile CO (changeover) mechanism enables you to switch between NO (normally open) and NC (normally closed) functions_x000D_ • Wide operating temperature range of 0°C to +55°C for use in a range of applications_x000D_ How does this float switch work?_x000D_ The switch has a built-in microswitch that responds automatically to the drop or rise in fluid. This microswitch activates a steel ball that closes or opens the float switch.
