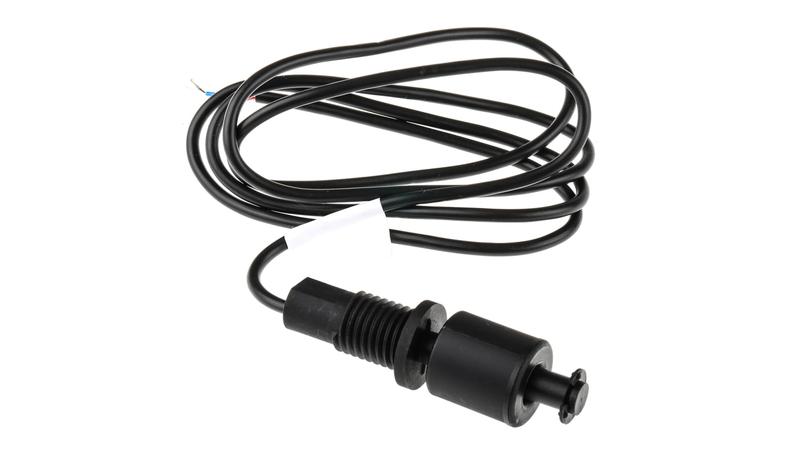

RSF103Y100JN Cynergy3 RSF100 Series Vertical Nylon Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

cynergy3 RSF100 Vertical Float Switches_x000D_ RSF100 series float switches from cynergy3 are a range of miniature vertical float switch. These float switches require external mounting and feature a single switching point._x000D_ • This series features an N/O (normally open) contact. However, this can easily be reversed to N/C (normally closed) by inverting the float and reattaching it to the stem._x000D_ • The float attached to this switch is small and compact allowing you to use this float switch in applications where space is at a premium._x000D_ • You can mount this float switch externally using a compression seal at the top or bottom of a tank. You do not need access to the inside of the tank that you will be using the float switch in._x000D_ • A choice of 25 W or 100 W models are available._x000D_ • These float switches are available in a range of materials; nylon, polypropylene, PPS and PVDF. The choice of construction material will enable you to choose the right float switch for your application. Float switches made from PVDF can withstand acids and alkalis._x000D_ • Dependent on model, this range of float switches feature an M12 connector or PVC/PTFE cable._x000D_ Sensata Cynergy3 Vertical Float Switch, NO/NC, 1m - RSF100 Series - RSF103Y100JN_x000D_ This Sensata Cynergy3 sensor float switch keeps track of liquid levels in your container to avoid dangerous overflows. You can also use the switch when emptying the tank to notify you when the liquid level is low enough. The float switch monitors the volume of fluid in a container with a sensor on its surface that sends a signal when the liquid level changes. As a vertical switch, it mounts to the side of the container, allowing you to install it in tanks or reservoirs with no top or bottom access._x000D_ Features & Benefits_x000D_ • External mount via a compression seal for tanks with restricted interior access_x000D_ • Compact design with small diameter float so you can install it in tight spaces_x000D_ • Lightweight nylon body is highly resistant to abrasion for improved durability_x000D_ • Wide operating temperature range of -20°C to +75°C means it's suitable for challenging conditions_x000D_ How durable is this switch?_x000D_ The connection is fitted with a nitrile rubber gasket, which has a high resistance to water and oil. This ensures a tight seal that won’t wear down over time. It also has enough strength to withstand pressure build-ups without coming loose.
