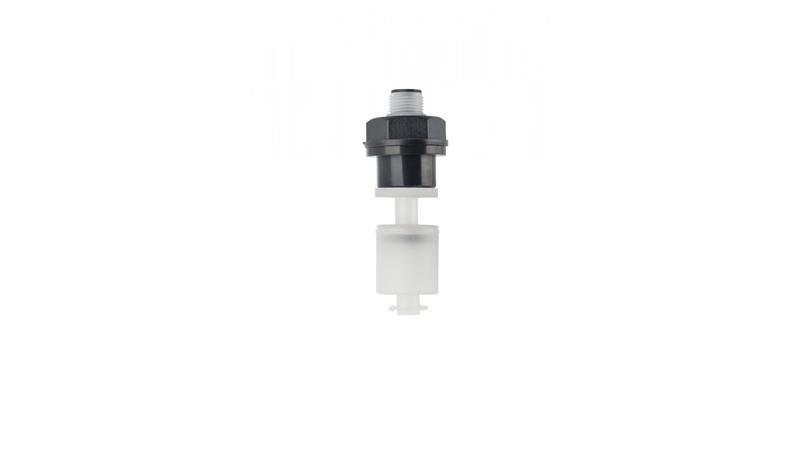

RSF106YVP Cynergy3 RSF100 Series Vertical Polyphenylene Sulfide Float Switch, NO/NC, 240V ac Max, 120V dc Max

cynergy3 RSF100 Vertical Float Switches_x000D_ RSF100 series float switches from cynergy3 are a range of miniature vertical float switch. These float switches require external mounting and feature a single switching point._x000D_ • This series features an N/O (normally open) contact. However, this can easily be reversed to N/C (normally closed) by inverting the float and reattaching it to the stem._x000D_ • The float attached to this switch is small and compact allowing you to use this float switch in applications where space is at a premium._x000D_ • You can mount this float switch externally using a compression seal at the top or bottom of a tank. You do not need access to the inside of the tank that you will be using the float switch in._x000D_ • A choice of 25 W or 100 W models are available._x000D_ • These float switches are available in a range of materials; nylon, polypropylene, PPS and PVDF. The choice of construction material will enable you to choose the right float switch for your application. Float switches made from PVDF can withstand acids and alkalis._x000D_ • Dependent on model, this range of float switches feature an M12 connector or PVC/PTFE cable._x000D_ Sensata Cynergy3 Float Switch, M12 Connector, NO/NC Switch Output - RSF100 Series - RSF106YVP_x000D_ Maintain a set liquid level in your tank using this float switch from Sensata Cynergy3. It's designed to monitor the rise and fall of liquid levels and triggers a supply pump if liquid levels are too low. This unit comes with an M12 connector for ease of connection to an alarm or control system. A maximum switching voltage of 240V AC and 120V DC makes it a good choice for use in low-voltage applications. Its tough polyphenylene sulfide body is resistant to chemicals and corrosion, making it suitable for use in harsh settings like wastewater treatment facilities and food production plants._x000D_ Features & Benefits_x000D_ • Viton gasket helps prevent leakage for efficient performance_x000D_ • Vertical mounting design for ease of installation in tanks without side access_x000D_ • Maximum switching current of 600mA for energy-efficient operation_x000D_ • Compact dimensions of 75 (length) x 21.5mm (diameter) to fit in small spaces_x000D_ Can I adjust the switch configuration?_x000D_ Yes. To adjust the switch configuration, remove the float, invert it and reattach it to the stem. This lets you choose between NO or NC operation, making this switch a versatile choice.
