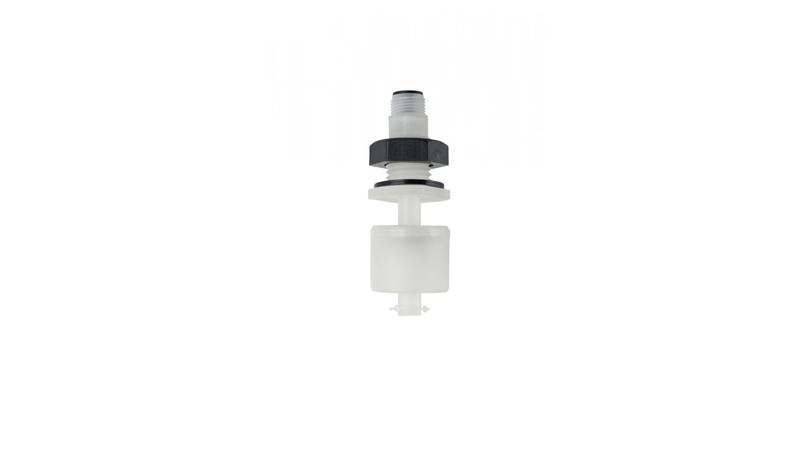

RSF158YFP Cynergy3 RSF150 Series Vertical Polypropylene Float Switch, NO/NC, 240V ac Max, 120V dc Max

Compact Vertical Float Switch - Internal Fitting_x000D_ M12 Electrical Connection_x000D_ WRAS approved Versions available_x000D_ N/O switching can be changed to N/c by inverting float_x000D_ Manufactured in Nylon, PPS and Polypropylene with Nitrile seals_x000D_ The RSF150 series of compact vertical float switches from Cynergy3 have a single switch point and are designed to be vertically mounted on either the top or bottom of the tank (access to the inside of the tank is required for installation)._x000D_ Suitable for use in vending machines, printing systems, chemical dosing equipment and various other applications_x000D_ Warning_x000D_ The cable entry point must NOT under any circumstances be submerged._x000D_ On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside._x000D_ On the Vertical type the mounting thread and cable entry must be above the highest level of the liquid._x000D_ Sensata Cynergy3 Float Switch, 240V AC Maximum Switching Voltage, M12 Connection - RSF150 Series - RSF158YFP_x000D_ Precisely manage the flow of liquid in your application with this vertical float switch from Sensata Cynergy3. It closes at 15mm and opens at 26mm to keep your liquid levels from becoming too low or too high. The device has a switching voltage of up to 240V AC and 120V DC, so it's suitable for use in low-power applications. For versatility, you can reverse its switching action by inverting the float. This float switch is suitable for use in applications such as vending machines and the chemical industry._x000D_ Features & Benefits_x000D_ • Polypropylene housing is resistant to chemicals and wear_x000D_ • M12 connector for a simple electrical connection_x000D_ • Wide operating temperature range between -20 and +100°C for use in demanding environments_x000D_ • Durable nitrile gasket forms a tight seal to prevent leaks_x000D_ What types of liquids is this float switch compatible with?_x000D_ This float switch is compatible with liquids that have a minimum specific gravity of 0.8. This means you can use it with liquids such as water, alcohol and oils, so it's a versatile choice.
