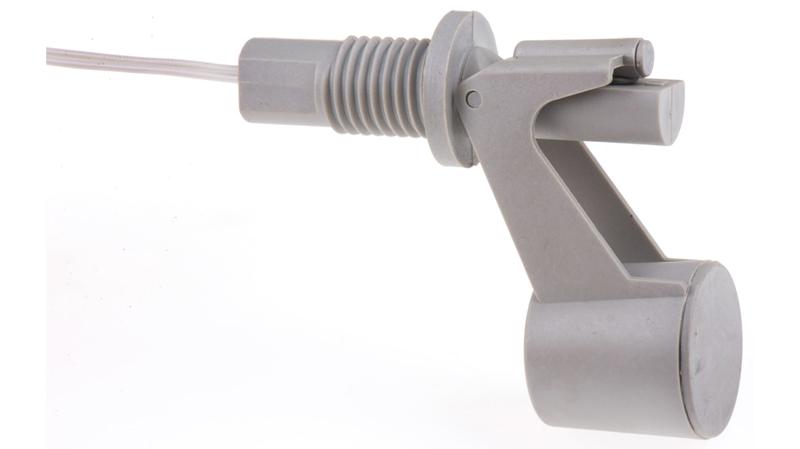

RSF16Y050TG Cynergy3 RSF10 Series Direct Mounting Polyphenylene Sulfide Float Switch, Float, 500mm Cable, NO/NC, 240V ac Max, 120V

Drop Float Switch_x000D_ A unique design switch which keeps the pivot area free from the fluid making them ideal for use in hot drink vending machines etc. Drop float types for monitoring upper level and extended drop float types for monitoring lower level in a tank._x000D_ Float positioned below the switch in N/C position_x000D_ Switch opens well before liquid level reaches the float pivot_x000D_ Polypropylene and PPS are WRAS approved, products for use in hot and cold water_x000D_ UL recognised (excludes 228-1964)_x000D_ Note_x000D_ Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads._x000D_ Supplied with_x000D_ 0.5m of PVC 16//0.2 cable (polypropylene and polysulfone ETFE) (PPS)._x000D_ Sensata Cynergy3 Direct Mounting Float Switch, 500mm Cable Length, 600mA - RSF10 Series - RSF16Y050TG_x000D_ Use this direct mounting float switch from Sensata Cynergy3 to monitor liquid levels in small tanks. The component's design keeps its pivot area free from fluids for efficient operation. It has a polyphenylene sulfide (PPS) body material that offers excellent thermal resistance, making it suitable for use in high-temperature environments._x000D_ This float switch is energy-efficient, as it consumes just 600mA (milliamperes) of current. It's useful in a variety of domestic and commercial applications, especially those that involve monitoring hot liquids._x000D_ Features & Benefits_x000D_ • Wide operating temperature range of -20°C to +120°C for use in harsh conditions_x000D_ • Cable length of 500mm for flexible access to the bottom of tanks or containers_x000D_ • Viton gasket to provide proper sealing and prevent leakages_x000D_ • Direct mounting method for quick and simple installation_x000D_ How can I ensure this float switch operates reliably?_x000D_ To prevent the float switch from failing, ensure that the float switch is properly configured and maintained. You should also ensure it's used only for applications it's rated for to maintain proper safety and functioning.
