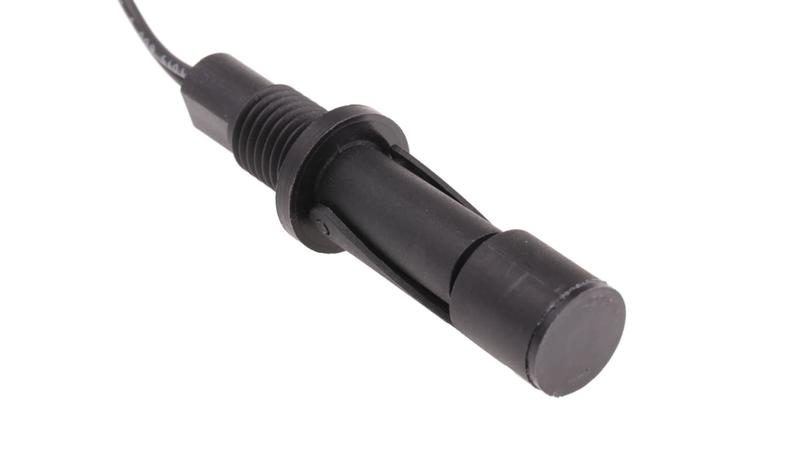

RSF43H100RF Cynergy3 RSF40 Series Horizontal Internal Nylon Float Switch, Float, 1m Cable, NO/NC, 300V ac Max, 300V dc Max

Sensata Cynergy3 Horizontal Float Switch, 1m, 600mA - RSF40 Series - RSF43H100RF_x000D_ Detect high liquid levels and prevent overflow in a container with this Sensata Cynergy3 float switch. It can also detect low water levels, letting you know when the tank has been properly emptied or filled._x000D_ The float switch sits on top of the surface liquid and turns on or shuts off when the liquid levels rise or fall. It's a horizontal component that's designed to be mounted on the side of your container. This makes it suitable for use on a tank where the top and bottom are inaccessible. You can use this float switch in applications such as commercial washing machines or vending machines._x000D_ Features & Benefits_x000D_ • Nylon body material with high tensile and compressive strength for long-lasting use_x000D_ • Broad operating temperature range of -20°C to +75°C for use in demanding applications_x000D_ • Insulated with a nitrile gasket ring for resistance to water and oil_x000D_ • Reversible switch action by rotating the device 180º for greater versatility_x000D_ How does the opening and closing mechanism on this switch operate?_x000D_ The float component has a magnet inside that moves closer to the switch component as the liquid level changes. The force of the magnet causes the reed in the switch to make it open or close.
