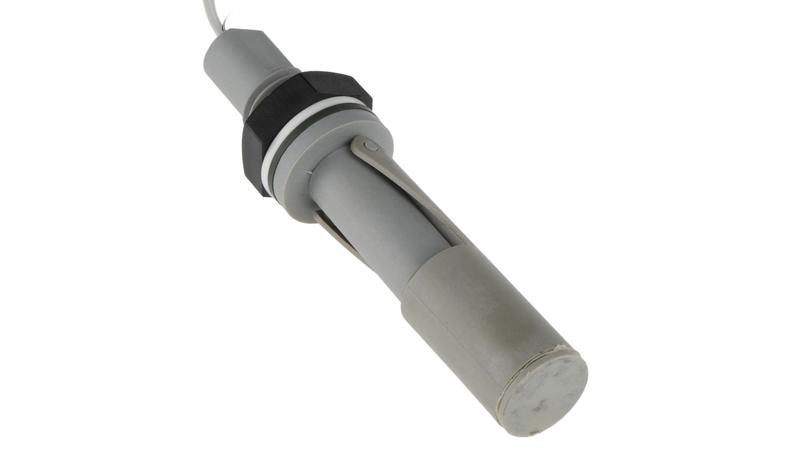

RSF46H050TG Cynergy3 RSF40 Series Horizontal Internal Polyphenylene Sulfide Float Switch, Float, 500mm Cable, NO/NC, 300V ac Max,

Cynergy3 Horizontal Float Switches_x000D_ Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards._x000D_ WRAS approval explained_x000D_ WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard._x000D_ What materials can you choose from?_x000D_ • Nylon_x000D_ • Polypropylene_x000D_ • Polypropylene Sulfide (PPS)_x000D_ Features and Benefits_x000D_ • Operating temperature: -10 °C to +120 °C_x000D_ • N/O or N/C Switch output_x000D_ • Switch action may be reversed by rotating the switch through 180º_x000D_ • Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile_x000D_ • Flying Lead_x000D_ • M12 plug connection_x000D_ • Internal & external fitting inside a tank_x000D_ • UL recognised_x000D_ Typical Applications_x000D_ These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units._x000D_ Note_x000D_ Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads._x000D_ Sensata Cynergy3 Internal Horizontal Float Switch, 500mm Cable, 1A Switching Current - RSF40 Series - RSF46H050TG_x000D_ Accurately detect the levels of liquids in your containers with this internal horizontal float switch from Sensata Cynergy3. Its PPS (polyphenylene sulfide) body material is resistant to abrasion and chemicals for long-lasting performance. A broad operating temperature range between -10°C and +120°C makes it suitable for use in harsh environments. For versatility, you can rotate the switch through 180° to reverse the switch action. The switch is designed for installation on the inside of the tank, so it's a good choice for situations where it's inconvenient to install it on the outside. It's commonly used in vending machines and commercial washing machines._x000D_ Features & Benefits_x000D_ • Viton gasket material is resistant to oils, solvents and heat for a durable, leakproof seal_x000D_ • Maximum switching current of 1A for energy-efficient operation_x000D_ • Cable length of 500mm for an adequate reach to a power source_x000D_ What parts are contained in this float switch?_x000D_ This float switch has a reed switch and pivoted magnet that's suitable for NO or NC operations. The movement of the attached float triggers this reed switch to open or close when fluid levels reach preset values.
