Cynergy3 Horizontal Float Switches_x000D_
Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards._x000D_
WRAS approval explained_x000D_
WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard._x000D_
What materials can you choose from?_x000D_
Nylon_x000D_
Polypropylene_x000D_
Polypropylene Sulfide (PPS)_x000D_
Features and Benefits_x000D_
Operating temperature: -10 °C to +120 °C_x000D_
N/O or N/C Switch output_x000D_
Switch action may be reversed by rotating the switch through 180º_x000D_
Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile_x000D_
Flying Lead_x000D_
M12 plug connection_x000D_
Internal & external fitting inside a tank_x000D_
UL recognised_x000D_
Typical Applications_x000D_
These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units._x000D_
Note_x000D_
Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads._x000D_

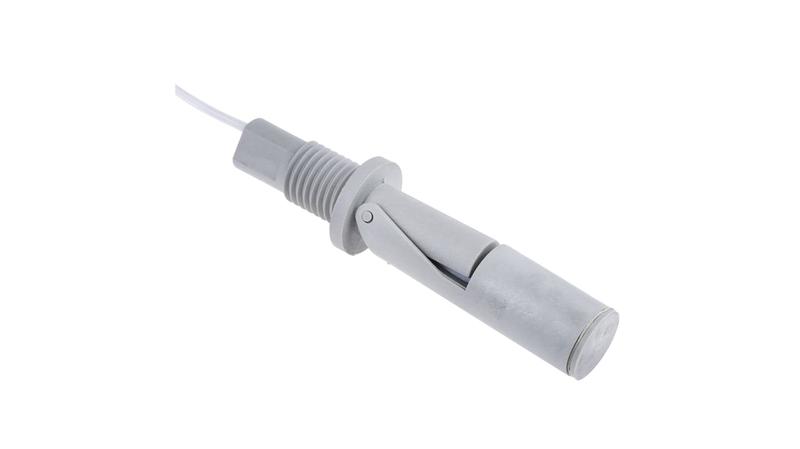

Sensata Cynergy3 Horizontal Internal Float Switch, NO/NC - RSF40 Series - RSF46Y050TG_x000D_
Choose this float switch from Sensata for precise liquid level detection and control in fluid systems. It can serve as both an alarm and an indicator and helps you keep water levels in tanks within permissible set points, preventing either under and overfilling. The device works by triggering the opening and closing of valves by means of a magnet and a reed switch. It's commonly used in chemical and water treatment plants as a reliable way to control flow._x000D_
Features and Benefits_x000D_
Polyphenylene sulphide body material for resistance to abrasion, solvents and chemicals_x000D_
Wide operating temperature range of -10°C to +120°C for use in demanding conditions_x000D_
Compact length of 98mm to fit into small spaces_x000D_
Viton gasket material for a secure seal that prevents leakage_x000D_
NO/NC (normally open/normally closed) switch output for versatility in the layout of your electrical circuits_x000D_
Can this switch be adjusted?_x000D_
The float can be adjusted up and down the rod to adjust the switch point by simply moving its stops._x000D_
How do I mount this switch?_x000D_
The switch is designed to be mounted inside a tank. You can fit it through a 16.5mm hole from the inside and secure it with a nylon nut on the outside.
