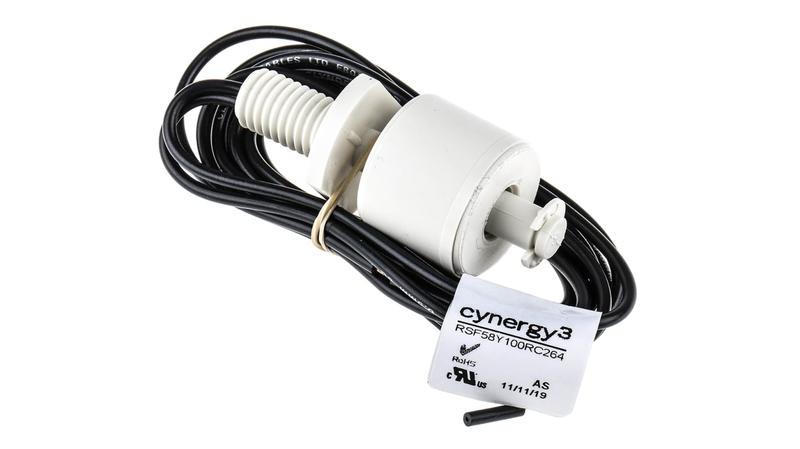

RSF58Y100RC Cynergy3 RSF50 Series Vertical Polypropylene Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

Cynergy3 RSF50 Series Float Switches_x000D_ Cynergy3 RSF50 float switches are compact devices suitable for vending machines printing system and chemical dosing equipment, for example. RSF50 float switches are vertically mounted and feature a single switch._x000D_ There is a range of different material options available within the RSF50 series so you will be sure to find a suitable float switch for more commonly used liquids._x000D_ The direction of the switch can be reversed by firstly removing the float, inverting the switch and re-fitting it to the stem._x000D_ Within the series there are 5 ranges:_x000D_ RSF53 (black) - Nylon_x000D_ RSF54 (opaque) - Polypropylene (WRAS approved)_x000D_ RSF56 (grey) - Polyphenylene Sulphide (PPS)_x000D_ RSF57 (green) - Polyvinylidene Fluoride (PVDF)_x000D_ RSF58 (white) - Polypropylene (UL approved)_x000D_ Note - the different ranges feature other differences. Please refer to the Datasheet for more information on technical specifications._x000D_ What contact types are there?_x000D_ The RSF50 float switches can be configured for N/O (Normally Open) or N/C (Normally Closed) operation._x000D_ What mounting thread does it have?_x000D_ RSF50 float switches have either M12 or 1/8” NPT mounting thread. This is depicted by the last part of the part number. If it ends in “B” or “C”, it is an M12. If it ends in “1/8” it is 1/8” NPT._x000D_ Note_x000D_ Part numbers ending in '1/8' have a 1/8"NPT mounting thread_x000D_ Part numbers ending in 'C' have an M12 mounting thread_x000D_ Warning_x000D_ The cable entry point must NOT under any circumstances be submerged._x000D_ On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside._x000D_ On the Vertical type the mounting thread and cable entry must be above the highest level of the liquid._x000D_ Supplied with_x000D_ epoxy sealed leadouts_x000D_ Sensata Cynergy3 Internal Mount Vertical Float Switch, NO/NC, 1m - RSF50 Series - RSF58Y100RC_x000D_ Regulate liquid levels in your tank or sump with this Sensata Cynergy3 float switch. Changes in liquid level cause the float to move which brings the internal magnet into close proximity with the reed switch, activating an open or closed circuit. This compact and durable device is most commonly used to operate a pump, and typical applications include vending machines, printing systems and chemical-dosing equipment. It can be fitted to the top or bottom of your tank to suit your access needs._x000D_ Features & Benefits_x000D_ • NO (normally open) or NC (normally closed) options for flexibility when designing your electrical circuit_x000D_ • Wide operating temperature range of -20°C to +100°C for use in challenging environments_x000D_ • 1m cable gives connection flexibility when installing_x000D_ • Standard M12 mounting thread for universal connections_x000D_ What different features do RSF50 series float switches have?_x000D_ Expertly designed Sensata Cynergy3 float switches are manufactured in a variety of durable plastics. They also come with a choice of gasket materials to suit the most commonly used liquids. Conveniently, the action of all of the switches can be reversed by removing the float, inverting it, then refitting it to the stem.
