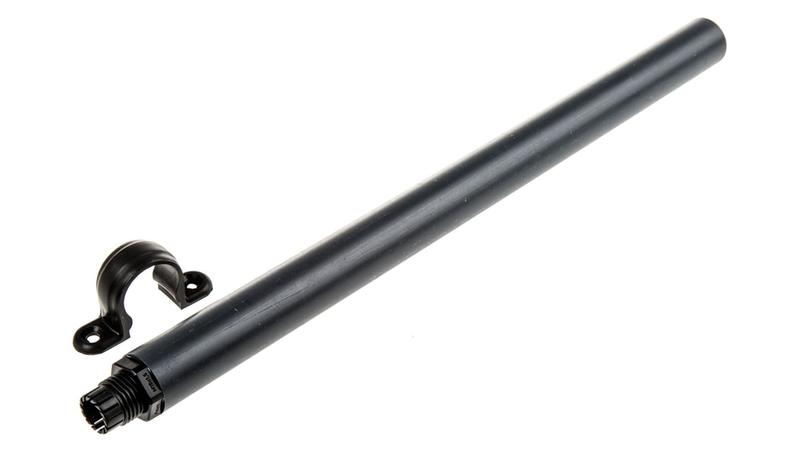

RSF64EXT Cynergy3 RSF64EXS Series Extension Tube for Use with RSF64 Series Float Switches

Variable Insertion Depth Vertical Float Switch_x000D_ A vertical float switch with N/O or N/C switching action. Its overall depth and position can be adjusted._x000D_ N/O Version has Contacts Which are Open when the Tank is Empty, N/C Version has Contacts which are Closed when the Tank is Empty_x000D_ Overall Depth can be Varied Between 150mm and 450mm by Adjusting its Position in a Sliding Clamp_x000D_ Up to 3 Extension Units (306mm long) May Be Added to Provide Insertion Depths up to 1350mm (see accessories)_x000D_ Temperature Range; 0 to 75°C_x000D_ Switching Depth; 123-423mm_x000D_ Electrical Life; 5 x 106 Operations_x000D_ Polypropylene Float, PPS Stem and PVC Class 7 Tube Material_x000D_ Note_x000D_ 211-985 - N/O Contact_x000D_ 348-8037 - N/C Contact_x000D_ Warning_x000D_ The Cable entry point must NOT under any circumstances be submerged._x000D_ On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside._x000D_ On the vertical type the mounting thread and cable entry must be above the highest level of the liquid._x000D_ Sensata Cynergy3 Extension Tube, For Use With RSF64 Series, PVC - RSF64EXT Series - RSF64EXT_x000D_ Add extra reach to your float switch with this extension tube from Sensata Cynergy3. The tube measures 306mm in length, and you can add up to three of them to your switch to achieve a maximum insertion depth of 1,340mm. The tube is made of class 7 PVC, which is resistant to most acids, oxidants and salts for use in demanding applications. A nitrile rubber seal helps to prevent leaks to maintain the efficiency of your system. Float switch extension tubes like this one are commonly used inside deep water tanks._x000D_ Features & Benefits_x000D_ • Wide operating temperature range of -20°C to +75°C for use in demanding environments_x000D_ • Compatible with float switches from the RSF64 series for ease of assembly_x000D_ What's a float switch used for?_x000D_ A float switch detects the level of water in a container, such as a tank or well. They can be set to open or close when liquid reaches a preset level, helping to prevent overfilling and underfilling._x000D_ How should I fit a vertical float switch?_x000D_ To fit a vertical float switch, attach it through the top or bottom of your tank. For safe use, be sure to position the mounting thread and cable entry above the highest level of the liquid.
