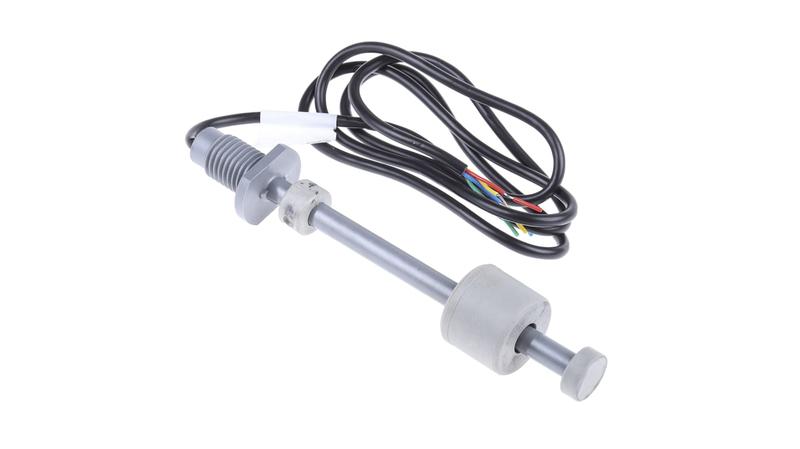

RSF66A25B100 Cynergy3 RSF66 Series PCB Mount Polyphenylene Sulfide Float Switch, Float, 1m Cable, Direct Load, 240V ac Max, 120V dc

Cynergy3 RSF66 Single Float Switches_x000D_ The Cynergy3 RSF66 single switch point series are float switches for high and low level switching._x000D_ The RSF66 float switches are made using Polyphenylene Sulphide (PPS) in grey, which is ideal for a wide range of different liquids. This makes the RSF66 range versatile for different applications._x000D_ Single float switches are typically used in systems that feature PLC process control._x000D_ What length cable do they come with?_x000D_ The RSF66 series comes with a 1m standard cable length with flying lead. It is a four core PVC cable._x000D_ What temperature can they withstand?_x000D_ -10°C to +85°C / +14°F to +185°F_x000D_ What is their power capacity?_x000D_ RSF66 float switches have a power capacity of 25VA._x000D_ Approvals:_x000D_ WRAS, UL and NSF approved_x000D_ Versions Available (including upper/lower switch levels):_x000D_ (348-7983) RSF66A25B75 - Single 30/75mm_x000D_ (348-7999) RSF66A25B100 - Single 30/100mm_x000D_ (348-8009) RSF66A25B125 - Single 30/125mm_x000D_ (348-8015) RSF66A25B150 - Single 30/150mm_x000D_ (348-8021) RSF66A25B175 - Single 30/175mm_x000D_ (446-2597) RSF66B50B150 - Double 50/150mm Filling Control_x000D_ (446-2581) RSF66B50B100 - Double 50/100mm Filling Control_x000D_ (446-2575) RSF66A50A150 - Double 50/150mm Emptying Control_x000D_ (446-2569) RSF66A50A100 - Double 50/100mm Emptying Control_x000D_ Warning_x000D_ The Cable entry point must NOT under any circumstances be submerged._x000D_ On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside._x000D_ On the vertical type the mounting thread and cable entry must be above the highest level of the liquid._x000D_ Approvals_x000D_ UL recognised_x000D_ Sensata Cynergy3 Vertical Float Switch, Polyphenylene Sulfide, 1 m - RSF66 Series - RSF66A25B100_x000D_ Looking for a simple way to maintain liquid levels in your tank or reservoir? Turn to this float switch from Sensata Cynergy3. Thanks to its polyphenylene sulphide (PPS) construction and nitrile gasket, it's resistant to heat, sunlight and abrasion, so it offers long-lasting performance in tough environments. These materials are also resistant to acids, alkalis and bleaches, so you can use the switch for a range of heavy-duty situations. The switch mounts vertically on the top of your fluid tank, so installation is straightforward. It's suitable for both high-level and low-level switching applications and is safe for use in food and beverage manufacture._x000D_ Features and Benefits_x000D_ • Broad operating temperature range of -10°C to +85°C for use in a variety of demanding environments_x000D_ • Suitable for use in programmable logic controller (PLC) process control systems for added versatility_x000D_ • Cable length of 1 m for ease of connection_x000D_ How does this type of switch work?_x000D_ Electrical switching is achieved by using two normally closed (NC) switches. Each switch will break the connection when the float rises past it to maintain an appropriate fluid level.
