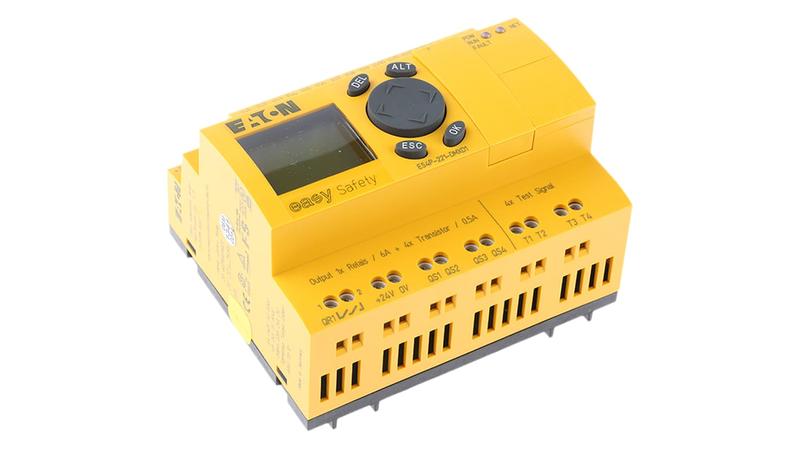

111017 ES4P-221-DMXD1 Eaton easySafety ES4P Series Safety Controller, 14 Safety Inputs, 9 Safety Outputs, 24 V dc

Eaton easySafety ES4P Controller_x000D_ The easySafety ES4P safety control relay monitors and evaluates safety-related information from safety devices such as position switches, light curtains, two-hand controls and emergency-stop buttons. The simple operation and variable configuration of the safety and control functions guarantee quick error diagnostics with the installation and machine components. Safety applications can be implemented that comply with international safety standards, such as category 4 in accordance with EN 954-1, PL e in accordance with EN ISO 13849-1, SILCL 3 in accordance with EN IEC 62061 and SIL 3 in accordance with EN IEC 61508._x000D_ There are two version available, a rugged version with relay outputs for safety and standard tasks (stock nos. 814-0389 & 814-0383) and a versatile version with transistor outputs and also one redundant relay output for flexible safety and standard tasks (stock nos. 814-0377 & 814-0386). Configuration is undertaken either directly on the device or on the PC using the easySoft-Safety software. It is possible to select between stand alone or integrated solutions in the easyNet network._x000D_ 14 safety inputs_x000D_ 4 safety relay outputs (stock nos. 814-0389 & 814-0383)_x000D_ 4 safety transistor outputs and 1 redundant safety relay output (stock nos. 814-0377 & 814-0386)_x000D_ 4 test signals_x000D_ 16 operating and message texts_x000D_ easyLink on board_x000D_ easyNet on board_x000D_ Safety and standard circuit diagram_x000D_ With and without display_x000D_ Additional remote display connected via integrated RS232 interface_x000D_ Standards_x000D_ EN 954-1, EN ISO 13849-1, EN IEC 62061, EN IEC 61508._x000D_ Note_x000D_ Eaton formerly known as Moeller
