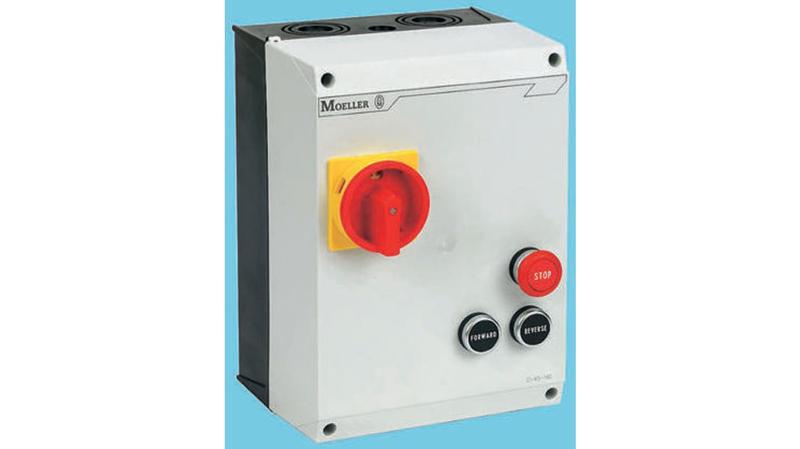

118536 XDRP4/I(230V50HZ,240V60HZ) Eaton 4 kW DOL Starter, 230 V ac, IP65

Reversing D.O.L - Insulated_x000D_ Totally Insulated enclosed starter complete with isolator for Reversing DOL applications to comply with IEE Regulations, 16th Edition on Isolation and Switching.The polycarbonate enclosure is IP65 with a light grey lid (RAL 7035) and black (RAL9005) base, they are fitted with AC-3 rated triple pole contactors, triple pole AC-3 rated switch disconnector and IP65 Stop, Forward and Reverse pushbuttons. The disconnector has the provision for up to 3 padlocks.The enclosure is pre-wired to accept the ZB thermal overloads which offer single phasing sensitivity to IEC 947-4._x000D_ Overload relay is not supplied and must be ordered separately_x000D_ Uses ZB12 overloads (typical example stk. no. 493-1239)_x000D_ Fitted with metric knockouts_x000D_ H280 x W200 x D160mm_x000D_ Note_x000D_ FLC figures quoted are maximum, other overload ratings can be used dependant on FLC rating.The starters which use the X Start range of components are not compatible with DILM components._x000D_ Note_x000D_ Eaton formerly known as Moeller
