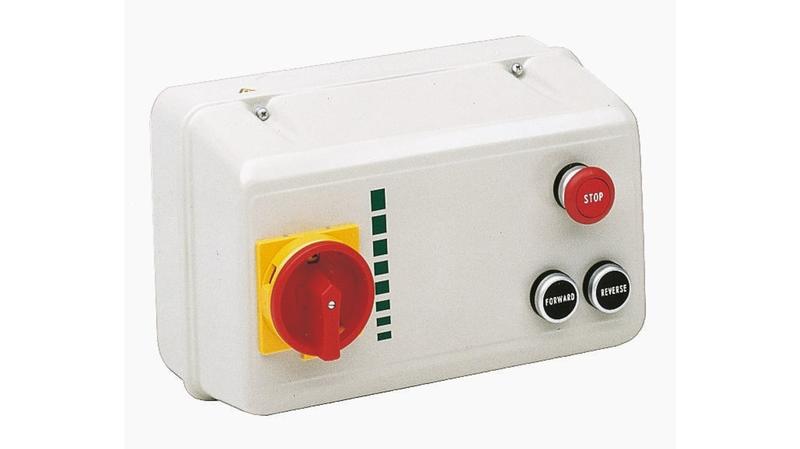

118539 XDRP4/ST(400V50HZ,440V60HZ) Eaton 4 kW DOL Starter, 400 V ac, IP55

Reversing D.O.L - Steel Enclosure_x000D_ IP55 sheet steel (epoxy paint RAl 7032) enclosed starter complete with isolator for Reversing DOL applications to comply with IEE Regulations, 16th Edition on Isolation and Switching. AC-3 rated triple pole contactors with IP20 terminals and triple pole AC-3 rated switch disconnector with IP20 terminals fitted as standard. The disconnector has provision for up to 3 padlocks (locakble in the 'off' position). The mushroom headed 'Stop' pushbutton is IP65 with the 'Forward and Reverse' pushbuttons having an IP65 flush operator, both have IP20 terminals. Manufactured using readily available Moeller components which comply with the following specifications: isolator: IEC 943-3, pushbuttons: IEC 947-5-1, contactors: IEC 947-4-1. The enclosure is pre-wired to accept the Moeller Z00 or ZB thermal overloads which offer single phasing sensitivity to IEC 947-4. Reversing starters comprise of an enclosure, switch disconnector, stop, forward and reverse pushbuttons, two contactors and a mechanical interlock._x000D_ Overload relay is not supplied and must be ordered separately_x000D_ Fitted with 4x25mm and 2x32mm knockouts_x000D_ H184 x W284 x D184mm_x000D_ Note_x000D_ FLC figures quoted are maximum, other overload ratings can be used dependent on FLC rating. The starters which use the X Start range of components are not compatible with DILM components._x000D_ Note_x000D_ Eaton formerly known as Moeller
