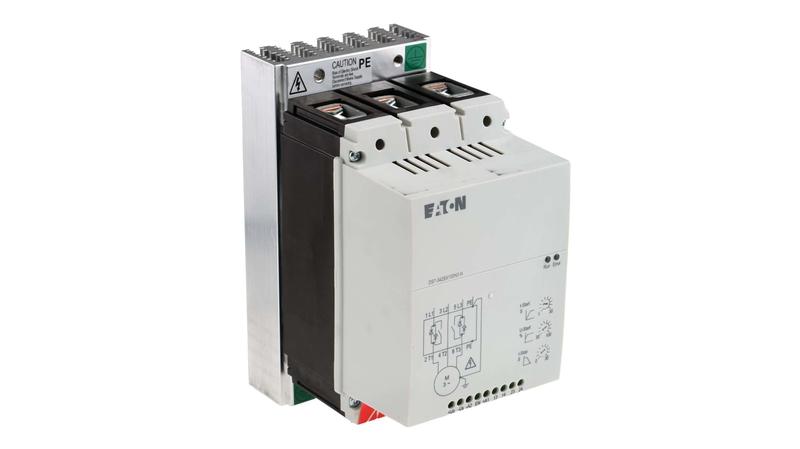

134938 DS7-342SX100N0-N Eaton 55 kW Soft Starter, 400 V ac, 3 Phase, IP20

Eaton Soft Starters - DS7 Series_x000D_ This range of softstarters have become increasingly established as an alternative to the star-delta starter. The DS7 is a fully integral part of xStart and all existing components can be used. Designed for normal applications that feature pumping and ventilation machines, fans and small conveyors alongside severs and standard applications. The DS7 is also available with SmartWire-DT connection to simplify wiring and enhance functionality as an automation solution._x000D_ Features & Benefits_x000D_ • Option to be connected directly to the PKE device_x000D_ • Low operating frequency (5 s, 3x Ie, 10 Starts)_x000D_ • The built-in fan removes any limitations_x000D_ • Can be used with existing standard Eaton Products_x000D_ • Available from 1.5kW up to 110kW_x000D_ • 24V DC and 230 - 460V AC voltage options available_x000D_ • Din Rail mounting or screw fixing_x000D_ • Option to mount side by side without any de-rating_x000D_ • Compact in design_x000D_ DS7-342SX100N0-N Soft Starter_x000D_ • The main function of this device is to perform as a soft starter for three-phase loads_x000D_ • The mains supply voltage is 400 - 480 V AC_x000D_ • The shock resistance is 8 g/11 ms_x000D_ • The average head dissipation at rated load cycle is 25W_x000D_ • Ramp time acceleration is 1-30 s_x000D_ • With internal bypass contacts_x000D_ • The soft start is not a current limiting circuit breaker_x000D_ • Forms part of the DS7 range_x000D_ Note_x000D_ Eaton formerly known as Moeller
