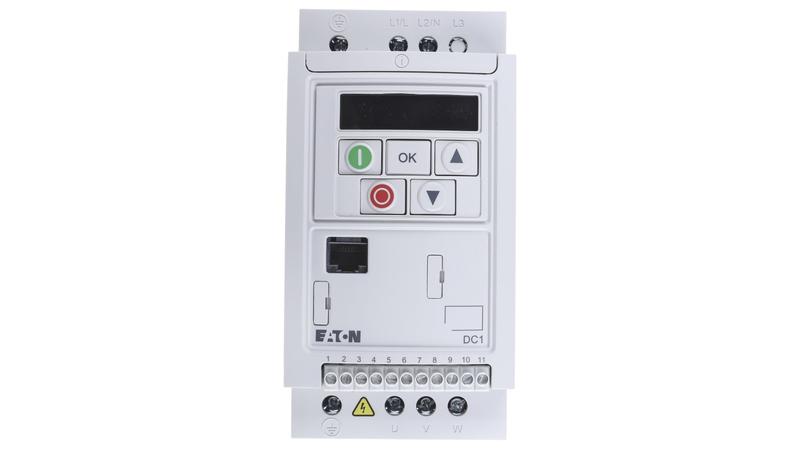

185806 DC1-124D3FN-A20CE1 Eaton Inverter Drive, 0.75 kW, 1 Phase, 230 V ac, 4.3 A, DC1 Series

Eaton PowerXL Compact Inverter Drives DC1 Series - Single Phase Input 230V_x000D_ The Eaton DC1 inverter series of compact variable frequency drives have been specifically designed for simple applications. With only 14 basic parameters and simple mounting and installation, the DC1 drives are perfect for quick commissioning. These compact variable frequency drives are ideal for mass production applications in the field of machine building. Expansion modules can be easily plugged into these drives and make it possible to expand the number of I/Os. Typical applications for these drives include fans, pumps, and conveyor systems._x000D_ Features and Benefits_x000D_ • Single-phase input / three-phase motor connection_x000D_ • Digital LED display_x000D_ • These drives can be used as stand-alone units directly on-site if they are equipped with a setpoint potentiometer, a selector switch, and a mains transfer switch._x000D_ • Fast commissioning with 14 basic parameters_x000D_ • V/Hz control with start voltage boost and slip compensation_x000D_ • Integrated PI controller_x000D_ • Integrated CANopen and Modbus_x000D_ • Large overload capability: 150% for 60 seconds, 175% for 2 seconds_x000D_ • A high-performance range of 0.37kW to 22 kW for maximum flexibility_x000D_ • IP20 & IP66 rated enclosure_x000D_ How do Inverter Drives Work?_x000D_ Inverter drive, also known as AC drives, variable frequency drives (VFD) variable speed drives (VSD) or frequency converters, are a type of speed drive that allows you as the user to adjust the speed or output torque of electric motors. Inverter drives are controlled by inputting specific frequencies or parameters into the device to tell it what to do, allowing for greater control over your machinery and operations. These drives have many applications of use from small appliances like a simple fan and pump load all the way through to high torque machine control applications._x000D_ Note_x000D_ Eaton formerly known as Moeller_x000D_ Eaton PowerXL DC1
