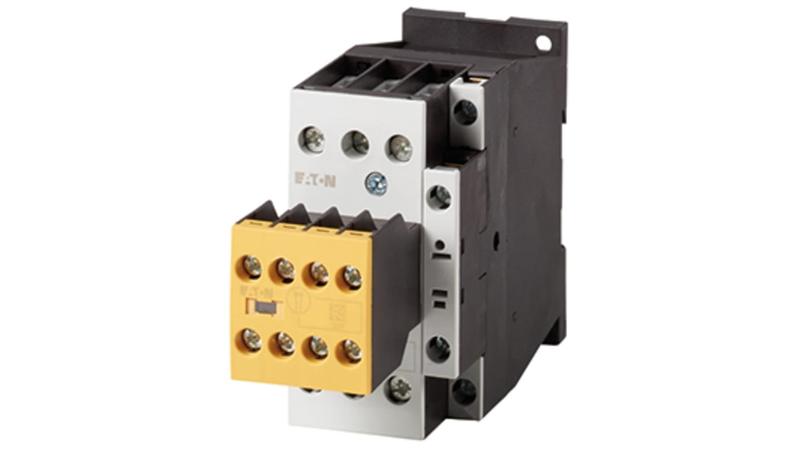

191743 DILMS17-23(230V50HZ,240V60HZ) Eaton DILMS Contactor, 230 V ac @ 50 Hz, 240 V ac @ 60 Hz Coil, 3 Pole, 18 A, 3NO

All versions of the DILMS safety contactor are equipped with a top-mounted auxiliary contact that is non-detachable. The integrated mirror contacts and interlocked opposing contacts make this contactor even safer. The contactor’s yellow cover allows for quick and easy identification. The built-in inspection window directly above the switch-position indicator makes it possible to monitor the operating status at any point in time. This reliably prevents the contactor from being activated manually. The DILMS range of contactors comprises four different sizes and covers the power range between 7 and 150 A._x000D_ Safe status monitoring of the contactor (inspection window) manual activation is not possible_x000D_ Eligible to be used for Emergency-stop application with controlled start (category 4)_x000D_ Reliable and self-monitoring machine-control circuits_x000D_ Interlocking opposing contacts_x000D_ Mirror contacts_x000D_ Highlighted in yellow (RAL1004)_x000D_ Reliable screw terminals_x000D_ Top-mounted and non-detachable auxiliary contact (at the front)_x000D_ Note_x000D_ Eaton formerly known as Moeller
