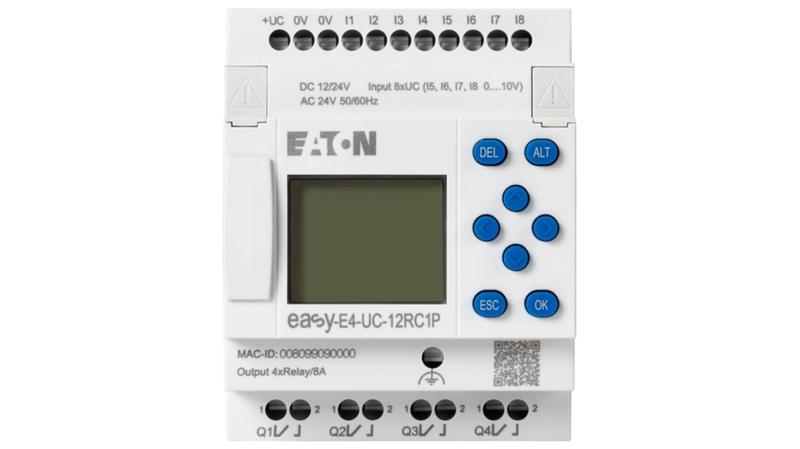

197504 EASY-E4-UC-12RC1P Eaton, Easy, Control Relay - 4 Inputs, 4 Outputs, Relay, For Use With Easy E4, Ethernet Networking

The Moeller Electronic control relay has rated operating voltage of 12 VDC, 24 VDC or 24 VAC. It has 8 digital input of which 4 inputs can also be used as analog inputs and 4 inputs can be used as high-speed counters. The control relay has 4 relay outputs for 12 to 250 VAC or 12 to 240 VDC. The easy-E4 control relay is equipped with a display, a clock, an integrated Ethernet interface and push-in terminals._x000D_ Dimensions 71.5 x 90 x 58 mm_x000D_ Connection type push-in terminals_x000D_ Connections RJ45 plug, 8-pin_x000D_ Cable CAT5_x000D_ Display type monochrome_x000D_ Operating ambient temperature °C -25 to 55 mm_x000D_ Input impedance 13.3 kΩ_x000D_ Data transfer rate 10/100 Mbit/s_x000D_ Degree of protection (IP) IP20_x000D_ UL File No. E205091_x000D_ UL Category Control No. NRAQ/7_x000D_ North America Certification UL listed_x000D_ Note_x000D_ Eaton formerly known as Moeller
