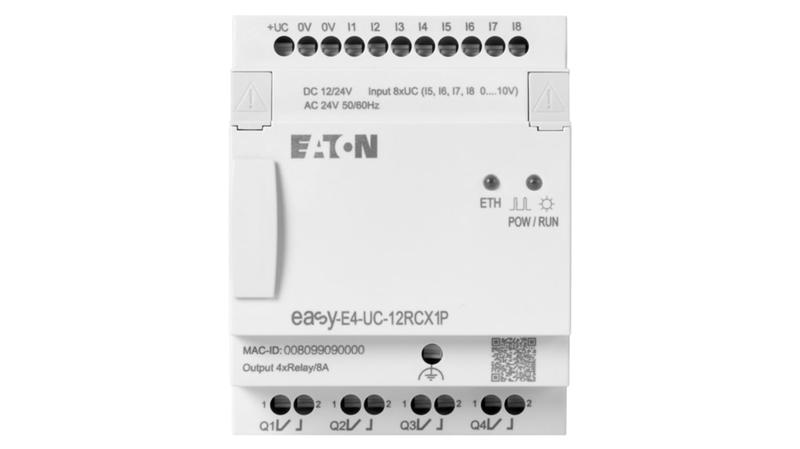

197505 EASY-E4-UC-12RCX1P Eaton, Easy, Control Relay - 4 Inputs, 4 Outputs, Relay, For Use With Easy E4, Ethernet Networking

The Moeller Electronic control relay has rated operating voltage of 12 VDC, 24 VDC or 24 VAC. It has 8 digital inputs of which 4 inputs can also be used as analog inputs and 4 inputs can be used as high-speed counters. The control relay has 4 relay outputs for 12–250 VAC or 12–240 VDC. The easy-E4 control relay is equipped with diagnostics LEDs, a clock, an integrated Ethernet interface and push in terminals._x000D_ Real time clock_x000D_ Connection type push-in terminals_x000D_ Software EASYSOFT-SWLIC/easySoft 7_x000D_ Dimensions 71.5 x 90 x 58 mm_x000D_ Ethernet connections RJ45 plug, 8-pin_x000D_ Ethernet cable CAT5_x000D_ Status indicator (LED) Power/RUN Ethernet_x000D_ Operating ambient temperature -25 to 55, cold as per IEC 60068-2-1_x000D_ Mounting position vertical or horizontal_x000D_ Accuracy of timing relays ± 0.02 %_x000D_ Frequency 50/60 (± 5%) Hz_x000D_ Data transfer rate 10/100 Mbit/s_x000D_ Connections RJ45 plug, 8-pin_x000D_ Cable CAT5_x000D_ Note_x000D_ Eaton formerly known as Moeller
