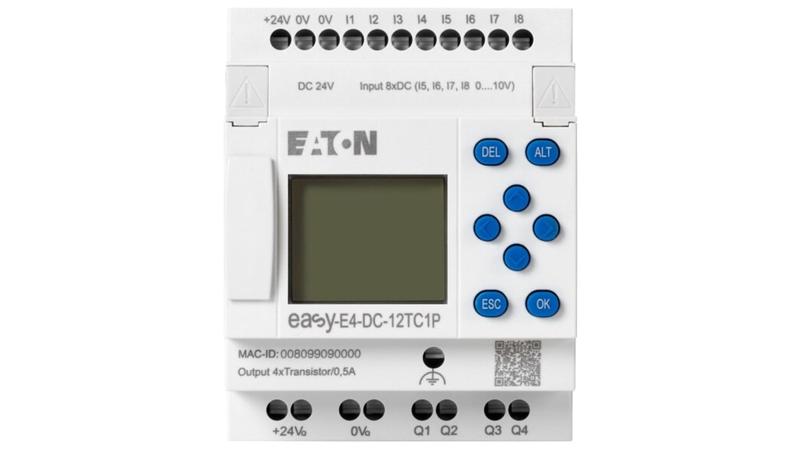

197506 EASY-E4-DC-12TC1P Eaton, Easy, Control Relay - 4 Inputs, 4 Outputs, Relay, For Use With Easy E4, Ethernet Networking

The Moeller Electronic control relay has rated operating voltage of 24 VDC. It has 8 digital inputs of which 4 inputs can also be used as analog inputs and 4 inputs can be used as high-speed counters. The control relay has 4 transistor outputs for 24 VDC. The easy-E4 control relay is equipped with a display, a clock, an integrated Ethernet interface and push-in terminals._x000D_ Quantity of outputs transistor_x000D_ Real time clock_x000D_ Display & keypad_x000D_ Connection type push-in terminals_x000D_ Software EASYSOFT-SWLIC/easySoft 7_x000D_ Dimensions 71.5 x 90 x 58 mm_x000D_ Connection type push-in terminals_x000D_ Ethernet connections RJ45 plug, 8-pin_x000D_ Ethernet cable CAT5_x000D_ Display type monochrome_x000D_ Lines x characters 6 x 16_x000D_ Protection type (IEC/EN 60529, EN50178, VBG 4) IP20_x000D_ Mounting position vertical or horizontal_x000D_ Accuracy of timing relays ± 0.02 %_x000D_ Input impedance 13.3 kΩ_x000D_ Data transfer rate 10/100 Mbit/s_x000D_ Note_x000D_ Eaton formerly known as Moeller
