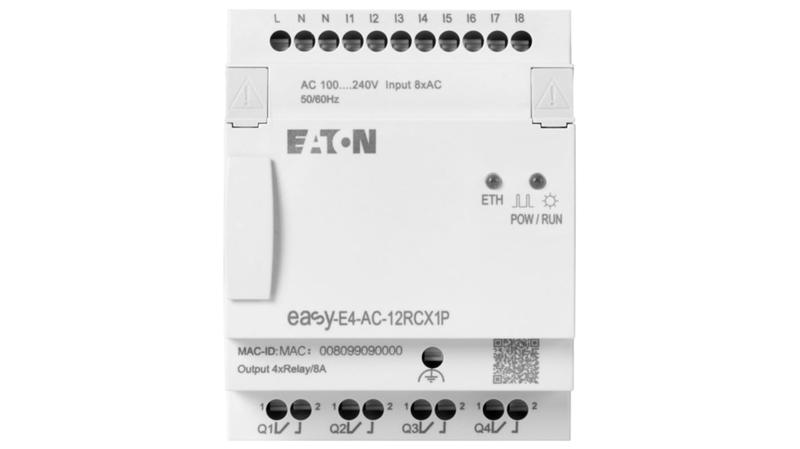

197509 EASY-E4-AC-12RCX1P Eaton, Easy, Control Relay - 8 Inputs, 4 Outputs, Relay, For Use With Easy E4, Ethernet Networking

The Moeller Electronic control relay has rated operating voltage of 100 to 240 VAC or 100 to 240 VDC. For cULus, 100 to 110 V DC applies to all V DC specifications. 8 digital inputs with 100–240 VAC or 100–240 VDC are available. The control relay has 4 relay outputs for 12–250 VAC or 12–240 VDC. The easy-E4 control relay is equipped with diagnostics LEDs, a clock, an integrated Ethernet interface and push-in terminals._x000D_ Output type relay_x000D_ Connection type push-in terminals_x000D_ Software EASYSOFT-SWLIC/easySoft 7_x000D_ Dimensions 71.5 x 90 x 58 mm_x000D_ Connection type push-in terminals_x000D_ Ethernet connections RJ45 plug, 8-pin_x000D_ Ethernet cable CAT5_x000D_ Mounting position vertical or horizontal_x000D_ Accuracy of timing relays (of values) ± 0.02 %_x000D_ Protection against polarity reversal_x000D_ Frequency 50/60 (± 5%) Hz_x000D_ Rated frequency 50/60 Hz_x000D_ Note_x000D_ Eaton formerly known as Moeller
