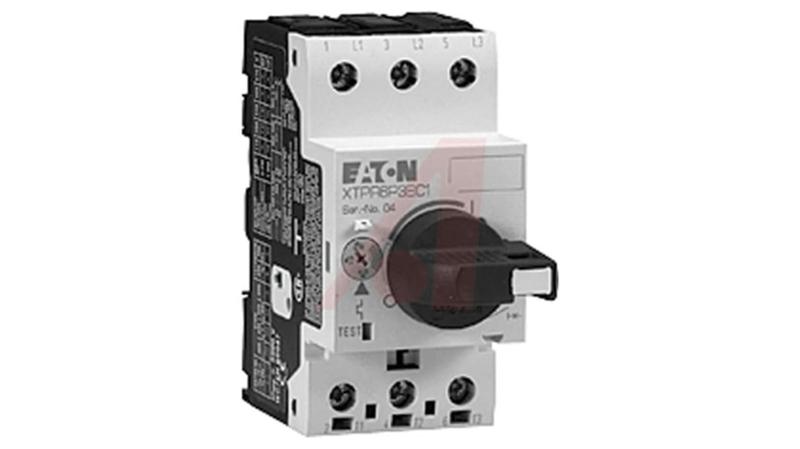

265339 XTPR6P3BC1 Eaton 4 → 6.3 A Motor Protection Circuit Breaker, 690 V ac

Manual Motor Protector_x000D_ The professional XT series of manual motor protectors from Eaton feature a push-button or rotary ON/OFF manual disconnect, class 10 adjustable bi-metallic overload relay and fixed magnetic short circuit trip capability in one compact unit._x000D_ Features:_x000D_ Rated Operational Current Up to 25 A_x000D_ Switching Capacity 50 kA/415 V_x000D_ Short Circuit Release, Fixed Setting to 14 ´ I_x000D_ Overload Release, Adjustable 0.6 — 1 ´ I_x000D_ Single-Phasing Sensitive_x000D_ Eaton Motor Protection Circuit Breaker, 6.3A Current Rating, 4kW Power Rating - XT Series - 265339XTPR6P3BC1_x000D_ Safeguard your industrial motors from short circuits and overloads with this MPCB from Eaton. It falls into the class 10 trip category, meaning it trips in 10 seconds or more at 6 times its thermal current rating. This makes it useful for motors that don't need a high inrush current to start. With compact dimensions of 94 (length) x 45 (width) x 93mm (height), this unit is a good choice for setups with limited space. You'll find breakers like this one commonly used to safeguard motors that drive conveyors and material handling equipment._x000D_ • Rotary handle to switch the device on or off, with lockout provision for safe isolation during maintenance_x000D_ • Durable thermoplastic housing for impact resistance and insulation from electric shocks_x000D_ • Visible trip indication for quick troubleshooting_x000D_ • Light weight of 227g to minimise strain on your equipment_x000D_ How durable is this circuit breaker?_x000D_ This circuit breaker can withstand up to 100,000 mechanical operating cycles, so you can rely on it for long-term performance._x000D_ What's the IP rating of this breaker?_x000D_ This device has an IP20 rating, indicating it's touch-proof and protected from tools and wires bigger than 12mm._x000D_ Note_x000D_ Eaton formerly known as Moeller_x000D_ Eaton XT Series
