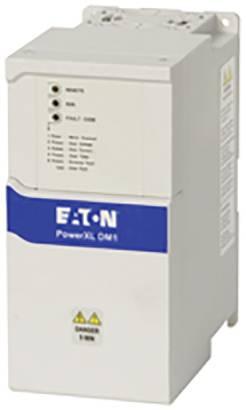

| Type | DM1-34016EB-N20B-EM |
| Manufacturer part # | 3-5027-006A |
| Width | 109 |
| Height | 220 |
| Depth | 180 |
| With control element | FALSE |
| Number of digital inputs | 4 |
| Number of digital outputs | 0 |
| Number of analogue inputs | 1 |
| Number of analogue outputs | 1 |
| Supporting protocol for LON | FALSE |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | FALSE |
| Supporting protocol for TCP/IP | FALSE |
| Supporting protocol for ASI | FALSE |
| Supporting protocol for PROFIBUS | FALSE |
| Supporting protocol for CAN | FALSE |
| Supporting protocol for INTERBUS | FALSE |
| Supporting protocol for KNX | FALSE |
| Supporting protocol for Modbus | TRUE |
| Supporting protocol for Data-Highway | FALSE |
| Supporting protocol for DeviceNet | FALSE |
| Supporting protocol for SUCONET | FALSE |
| Supporting protocol for other bus systems | FALSE |
| Degree of protection (IP) | IP20 |
| With PC connection | TRUE |
| Supporting protocol for SERCOS | FALSE |
| Supporting protocol for INTERBUS-Safety | FALSE |
| Mains voltage | 380-480 |
| Mains frequency | 50/60 Hz |
| 4-quadrant operation possible | TRUE |
| Number of interfaces PROFINET | 0 |
| Type of converter | U converter |
| Number of phases output | 3 |
| Number of phases input | 3 |
| Integrated breaking resistance | TRUE |
| Application in industrial area permitted | TRUE |
| Application in domestic- and commercial area permitted | TRUE |
| Max. output frequency | 400 |
| Max. output at linear load at rated output voltage | 7.5 |
| Max. output at quadratic load at rated output voltage | 11 |
| Relative symmetric net voltage tolerance | 10 |
| Relative symmetric net frequency tolerance | 10 |
| Supporting protocol for AS-Interface Safety at Work | FALSE |
| Supporting protocol for DeviceNet Safety | FALSE |
| Supporting protocol for EtherNet/IP | FALSE |
| Supporting protocol for Foundation Fieldbus | FALSE |
| Supporting protocol for PROFINET CBA | FALSE |
| Supporting protocol for PROFINET IO | FALSE |
| Supporting protocol for PROFIsafe | FALSE |
| Supporting protocol for SafetyBUS p | FALSE |
| Max. output voltage | 500 |
| Nominal output current I2N | 16 |
| Supporting protocol for BACnet | FALSE |
| Degree of protection (NEMA) | Other |
| Product type | Frequency inverter |
