78626734 CI43E-150+L1-CI43 Eaton Contactor Mounting Enclosure for use with DIL2AM Series, DIL2M Series

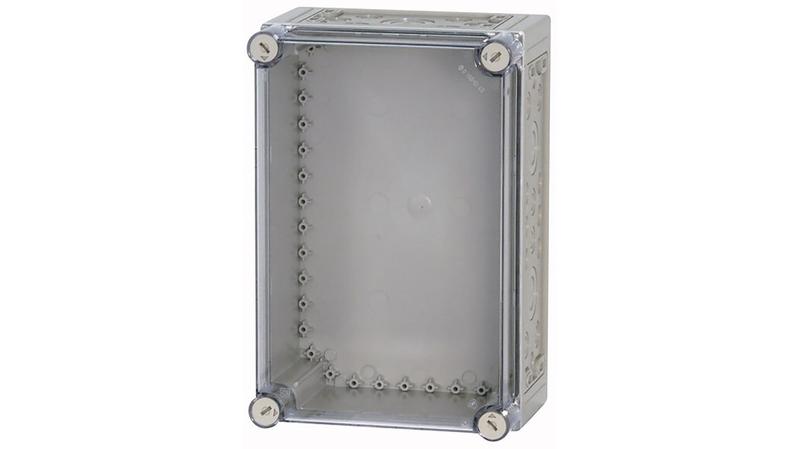

Insulated Surface Mount Enclosures_x000D_ Insulated mounting enclosures from Eaton in a two-part modular system design for use with DIL*M contactors, auxiliary contacts and overload relays. The basic enclosure is made from high impact resistant polycarbonate with an IP65 degree of protection and uses patented sealable cover fasteners with integrated overpressure compensation to prevent short circuits. With metric cable entry knockouts in all side walls and cable entries in the top and bottom. Full area knockouts in the sides can be converted to a distribution board enclosure by knocking out the side walls. A knockout cover can be optionally fitted using a cylinder lock. This unit includes fixing strap for easy wall mounting. The base is RAL 7035 grey and the removable cover is a smoky transparent to give god visibility to any components mounted inside._x000D_ The second part of this design is a pre-drilled mounting plate made from strong 3 mm thick galvanised steel. The holes are drilled to suit metric threads and fixing screws are included._x000D_ Both parts are supplied together to complete this modular mounting system._x000D_ • High impact polycarbonate enclosures_x000D_ • Two part design with removable cover_x000D_ • Ingress protection of IP65_x000D_ • Pre-drilled mounting plates for ’DIL M’ contactors, auxiliaries and overload relays_x000D_ • PG16 knockouts top, bottom and both sides_x000D_ • Ambient temperature -40°C to +80°C_x000D_ Note_x000D_ Eaton formerly known as Moeller
