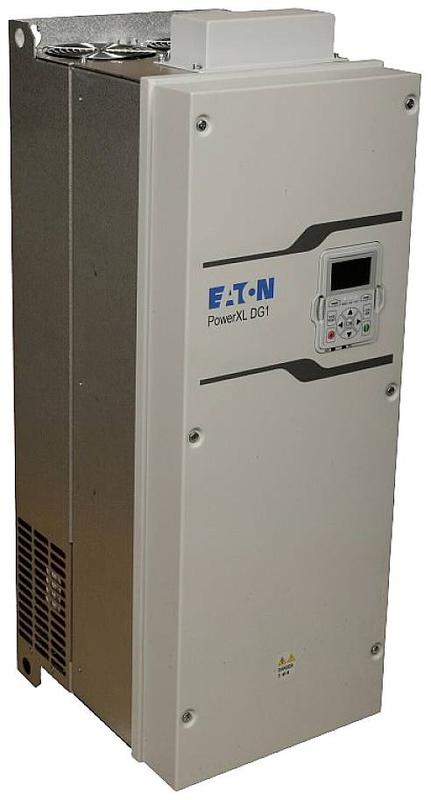

| Type | DG1-34170FB-C21C |
| Manufacturer part # | Y7-9702-5010-00P |
| Width | 460 |
| Height | 1135 |
| Depth | 521 |
| With control element | TRUE |
| Number of digital inputs | 8 |
| Number of digital outputs | 1 |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Supporting protocol for LON | FALSE |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 1 |
| With optical interface | FALSE |
| Supporting protocol for TCP/IP | TRUE |
| Supporting protocol for ASI | FALSE |
| Supporting protocol for PROFIBUS | TRUE |
| Supporting protocol for CAN | TRUE |
| Supporting protocol for INTERBUS | FALSE |
| Supporting protocol for KNX | FALSE |
| Supporting protocol for Modbus | TRUE |
| Supporting protocol for Data-Highway | FALSE |
| Supporting protocol for DeviceNet | TRUE |
| Supporting protocol for SUCONET | FALSE |
| Supporting protocol for other bus systems | TRUE |
| Degree of protection (IP) | IP21 |
| With PC connection | TRUE |
| Supporting protocol for SERCOS | FALSE |
| Supporting protocol for INTERBUS-Safety | FALSE |
| Mains voltage | 380-500 |
| Mains frequency | 50/60 Hz |
| 4-quadrant operation possible | TRUE |
| Number of interfaces PROFINET | 0 |
| Type of converter | U converter |
| Number of phases output | 3 |
| Number of phases input | 3 |
| Integrated breaking resistance | TRUE |
| Application in industrial area permitted | TRUE |
| Application in domestic- and commercial area permitted | TRUE |
| Max. output frequency | 400 |
| Max. output at linear load at rated output voltage | 90 |
| Max. output at quadratic load at rated output voltage | 110 |
| Relative symmetric net voltage tolerance | 10 |
| Relative symmetric net frequency tolerance | 10 |
| Supporting protocol for AS-Interface Safety at Work | FALSE |
| Supporting protocol for DeviceNet Safety | FALSE |
| Supporting protocol for EtherNet/IP | TRUE |
| Supporting protocol for Foundation Fieldbus | FALSE |
| Supporting protocol for PROFINET CBA | FALSE |
| Supporting protocol for PROFINET IO | TRUE |
| Supporting protocol for PROFIsafe | FALSE |
| Supporting protocol for SafetyBUS p | FALSE |
| Max. output voltage | 500 |
| Nominal output current I2N | 170 |
| Supporting protocol for BACnet | TRUE |
| Degree of protection (NEMA) | 1 |
| Product type | Frequency inverter |
