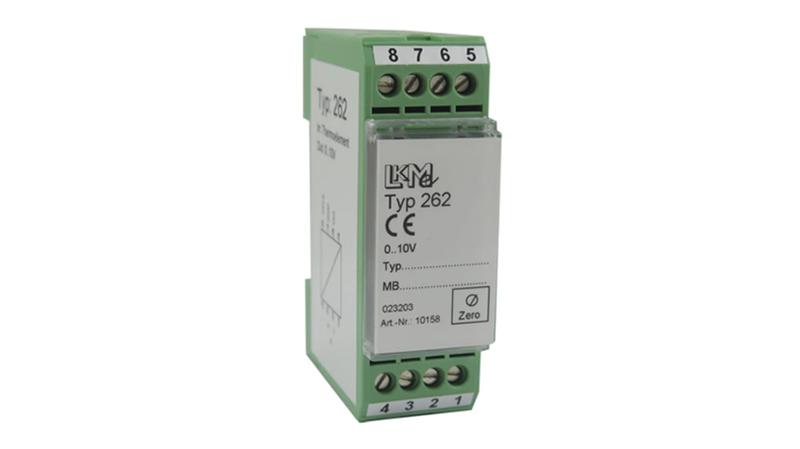

LKM 262 Electrotherm Digital Transducer

LKM 262 Digital Programmable Measuring Transducer_x000D_ The LKM 262 is a digital programmable measuring transducer which is for mounting on a standard rail. The transducer can be programmed for different thermocouples according to DIN EN 60584-3. The LKM 262 converts the temperature dependent thermoelectric voltage of the sensors temperature linearly into a standard signal. The signal ranging from 0 to 10V. The temperature compensation_x000D_ is effected within the measuring transducer itself. The measuring transducer can be programmed by using the universal interface, LKM S1 which is available from RS. An adjusting controller allows immediate minor display corrections._x000D_ Input: thermocouples K, J, L, T, U, E, N, S, B, R, C in the respective range of definition_x000D_ Zero: -200 to 600°C* depending on thermocouple_x000D_ Range: 50K_x000D_ Linearity error: 0.3K depending on the thermocouple_x000D_ Measurement error: 0.2%_x000D_ Error of reference junction: +/- 0.5°C_x000D_ Supply voltage: 15 to 35VDC, 15 to 26VAC reverse polarity protected_x000D_ Maximum current consumption: 20mA_x000D_ Output: 0 to 10V programmable_x000D_ Sensor break: 10V_x000D_ Short-circuit: voltage value for room temperature_x000D_ Response time: 0.5s_x000D_ TC: 100ppm/°C_x000D_ Operating temperature range: -40 to 85°C_x000D_ Moisture: 95%_x000D_ Mounting: 35mm DIN-rail_x000D_ Housing: Polycarbonate 75x25x53mm_x000D_ Type of terminals: screw terminals_x000D_ Clamping range: 0.2 to 2.5mm²_x000D_ Weight: approx. 60g_x000D_ Vibration: 5g/10 to 200Hz_x000D_ Note_x000D_ LKM S1 Universal Interface see RS Stock number 9130857_x000D_ Approvals_x000D_ EMC Emission and Noise immunity : EN 61326-1:2006 EN 61326-2-3:2006
