LKM 264 Electrotherm Digital Transducer

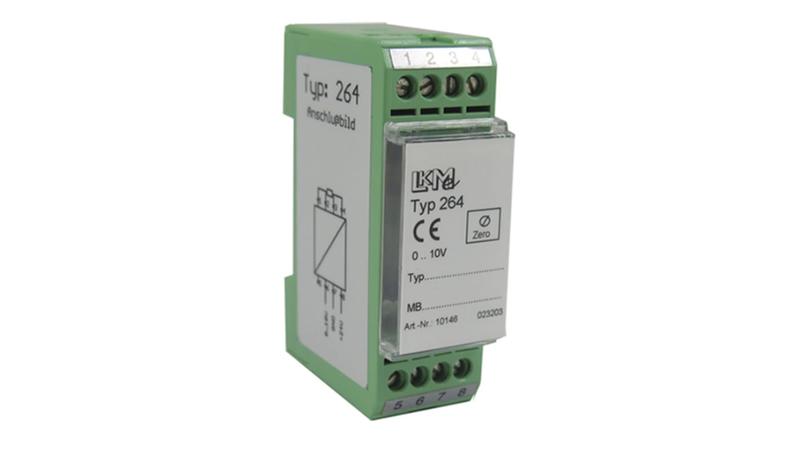

LKM 264 Pt100/Pt1000 Digital Programmable Measuring Transducer_x000D_ The LKM264 is a digital programmable measuring transducer for_x000D_ Resistance sensors with a 0 to 10 V current output. The LKM 264 transducer has been designed for installation on a 35-mm top hat rail. A PC and programming cable are used to specify sensor type, measuring range, and circuit type._x000D_ Minor corrections can be carried out with the zero point controller. The sensor is connected with a 3-lead or 4-lead circuit._x000D_ Input: Pt100 Pt1000 Ni100 Ni1000 resistor programmable_x000D_ Total measuring range: -200 to 850°C Pt100, -200 to 300°C Pt1000, -60 to 250°C Ni100/ (TK 5000/6180), -60 to 200°C Ni1000 (TK 5000/6180), 0 to 400, 0 to 2000 resistors_x000D_ Connection type: 2-/3-/4- wire circuit programmable_x000D_ Zero: programmable_x000D_ Span: programmable_x000D_ Measuring current: 0.25mA_x000D_ Current consumption: max.10mA_x000D_ Loop voltage: 15 to 35VDC, 15 to 26VAC polarity-safe_x000D_ Linearity error: 0.1%FS_x000D_ Resolution: 14 bit_x000D_ Linearisation accuracy: 0.1 K_x000D_ Measuring rate: 2/s_x000D_ Output: 0 to 10V other output voltages possible_x000D_ Probe break: 10V_x000D_ Short-circuit: 0V_x000D_ Clamping range: screw clamps 0.2 to 2.5mm²_x000D_ Temperature coefficient: 0.015 K/°C set temperature range, 0 to 100°C_x000D_ Operating temperature range: -25 to 70°C_x000D_ Mounting: 35mm DIN-rail_x000D_ Housing: Polycarbonate 75x25x53mm_x000D_ Weight: approx. 60g_x000D_ Transducer LKM 264 Pt100 / Pt1000 Rail Assembly_x000D_ Approvals_x000D_ EMC Emission and : EN 61326-1:2006 EN 61326-2-3:2006
