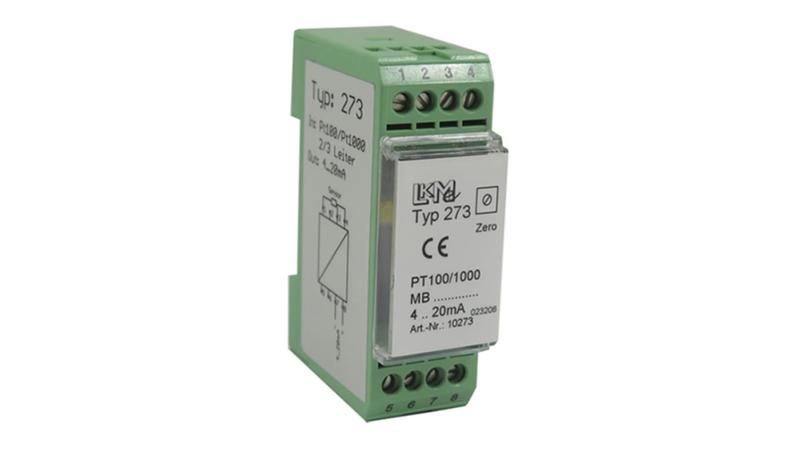

LKM 273 Electrotherm Digital Transducer

LKM 273 Pt100/Pt1000 Digital Configurable Measuring Transducer_x000D_ The LKM 273 is a digital configurable measuring transducer for Pt100 / Pt1000 and is designed for installation on a 35 mm top hat rail. This transducer has a 20 to 20 mA current output. To set 13 different measuring ranges use a 4 DIP switches. You can make minor corrections for the transducer with a zero point controller. The sensor for the LKM 273 is detected automatically and connected with a 3-/2- lead circuit._x000D_ Measuring ranges that can be configured_x000D_ -100 to 100°C, -50 to 50°C, -40 to 60°C, -30 to 70°C, -20 to 150°C_x000D_ 0 to 50°C, 0 to 100°C, 0 to 200°C, 0 to 250°C, 0 to 300°C, 0 to 400°C, 0 to 500°C, 0 to 600°C_x000D_ Input: Pt100/Pt1000 self-detecting, 2/3- wire circuit_x000D_ Overall measuring range: Pt100: -100 to 600°C, Pt1000:-100 to 300°C, adjustable via DIP-switch_x000D_ Measurement current: 0.25 mA_x000D_ Current consumption: max. 21mA_x000D_ Resolution: 14 bit_x000D_ Measuring rate: 2/s_x000D_ Output: 4 to 20mA_x000D_ Temperature coefficient: 0.015K/°C set temperature range 0 to 100°C_x000D_ Dimensions: 75x25x53mm (HxWxD)_x000D_ Weight: approx.60g_x000D_ Loop voltage: 10. To 35 Vdc polarity-safe_x000D_ Linearity error: 0.1%FS_x000D_ Probe break: 20mA_x000D_ Short circuit: 4mA_x000D_ Clamping range: 0.2 to 2.5mm² screw clamps_x000D_ Temperature coefficient: 0.015K/°C set temperature range 0 to 100°C_x000D_ Operating temperature range: - 25°C to 70°C_x000D_ Dimensions: 75x25x53mm (HxWxD)_x000D_ Weight: approx.60g_x000D_ Transducer LKM 273 Pt100 / Pt1000 Rail Assembly_x000D_ Approvals_x000D_ EMC Emission and Noise immunity: EN61326-1:2006. EN61326-2-3:2006
