LKM 282 Electrotherm Digital Transducer

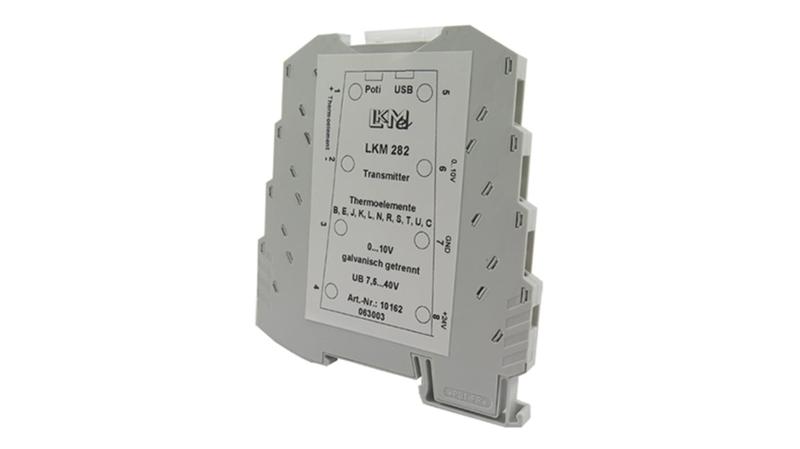

LKM 282 Digital Programmable Measuring Transducer_x000D_ The LKM 282 series is a digital programmable galvanically isolated measuring transducer for thermocouples. The transducer is mounted on standard rails. The LKM 282 transducer was designed to be used in cars. The transducer has a high interference immunity plus a wide range of voltages even a supply voltage of 8V you can obtain a liner output signal of 10V. A slim 6mm design means this transducer takes little space on a standard rail and has optimum shock resistance._x000D_ An added benefit to all users is that this measuring transducer can be programmed for a variety of thermocouples all to DIN EN 60584-3.The sensors thermoelectric emfs are converted temperature linearly into the output signal which ranges from 0 to 10V. This is where temperature compensation takes place within the measuring transducer which is configured via a micro USB port._x000D_ Input Thermocouples - K, J, L, T, U, E, N, S, B, R, C_x000D_ Span: 50K_x000D_ Linearity error: 0.3K_x000D_ Measurement error: 0.2%_x000D_ Error of reference junction: +/- 0.5°C_x000D_ Supply voltage: 8 to 35 VDC, 8 to26 VAC polarity-safe_x000D_ Max. current consumption: 15mA at 24VDC_x000D_ Galvanic isolation: 2.5kV_x000D_ Output: 0 to10V / 10 to 0V current-limited (1mA)_x000D_ Sensor break: 10V typically 11V_x000D_ Short circuit: voltage value for room temperature_x000D_ Response time: 0.5s_x000D_ TC: 100ppm/K_x000D_ Humidity: 95%_x000D_ Mounting: 35mm DIN-rail_x000D_ Material: polyester_x000D_ Dimensions: 100x6x93mm (HxWxD)_x000D_ Type of terminals: screw terminals spring-cage terminals are possible_x000D_ Clamping range: 0.2 to 2.5mm²_x000D_ Weight: approx.54g_x000D_ Vibration: 147 to 500Hz / 300 m/s² 500Hz to 2K / 200 m/s²_x000D_ Galvanically Isolated Digital Programmable Measuring Transducer_x000D_ Approvals_x000D_ EN61326-1:2006_x000D_ EN61326-2-3:2006
