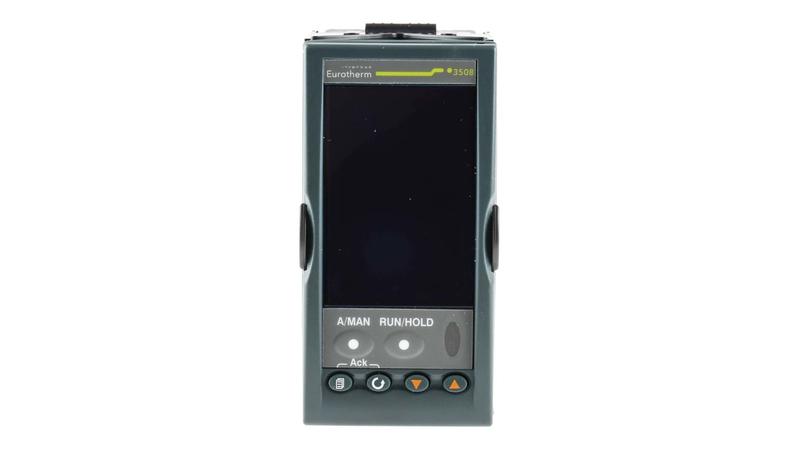

3508/CC/VH/X/XX/1/1/XXX/G/D4/LO/R4 Eurotherm 3508 PID Temperature Controller, 48 x 96mm, 6 Output Analogue, Changeover Relay, Logic, Relay, 85 →

Eurotherm Temperature Controller_x000D_ The Eurotherm 3508 temperature controller has a supply voltage ranging from 85VAC to 264VAC. This standard controller has a width of 48mm and a height of 92mm and depth of 101mm (1/8 DIN) device. It has 6 analog outputs. Along with precision control of temperature, it hosts other process variables with other advanced options making it the most adaptable product in its class. A simple 'quick start' process is used to configure all the basic functions essential to controlling your process. This includes input sensor type, measurement range, control options and alarms. More advanced features are configured using a PC based graphical configuration tool enabling users to pick function blocks from a library and connect them using soft wiring._x000D_ Features and Benefits_x000D_ 1 program_x000D_ 2 PID loops_x000D_ 4-line message centre provides custom_x000D_ 5-digit display provides a clear and unambiguous indication of the process value_x000D_ Carbon potential_x000D_ Custom user interface_x000D_ Maths/logic/timers_x000D_ OEM security_x000D_ Precision PV input_x000D_ Recipes_x000D_ Vertical and horizontal bar graphs provide at a glance visual indication of the process_x000D_ Applications_x000D_ Autoclaves_x000D_ Environmental chambers_x000D_ Heat treatment_x000D_ Melt pressure_x000D_ Process applications_x000D_ Reactors and Fermenters_x000D_ Semi-conductors_x000D_ Certifications_x000D_ IP65 rated
