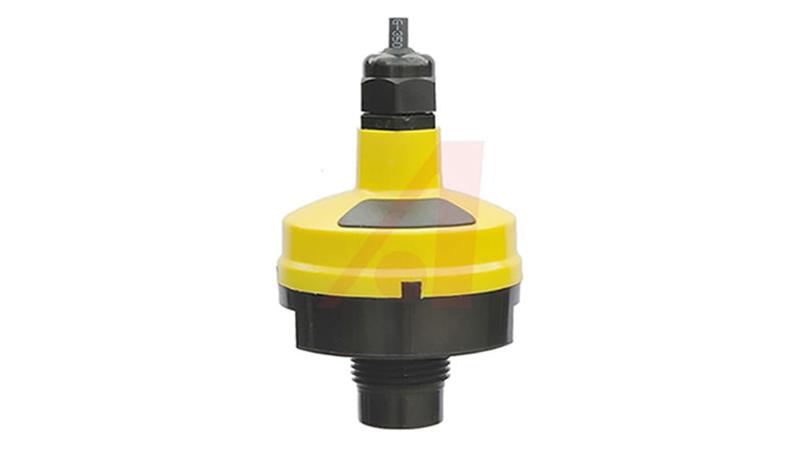

DL24-00 Flowline EchoPod Series Ultrasonic Level Transmitter Ultrasonic Level Sensor, 2 Wire Relay Output, Vertical,

Flowline Ultrasonic Level Sensor_x000D_ The Flowline Ultrasonic level transmitter provides continuous level measurement up to 9.8ft (3.0m) and output current rating ranging from 4mA to 20mA and is configured via our free webcal software. This level sensor has 4 programmable relays with selectable hysteresis and fail-safe logic. The embedded level controller can lower the cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids._x000D_ Note:_x000D_ Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint and Commander_x000D_ Features and Benefits_x000D_ Accurate measurement made possible because of automatic temperature compensation_x000D_ Optimised for small tank applications with a narrow 2in beam width and 4in short dead band_x000D_ PVDF transducer and 6P polycarbonate enclosure construction is suitable for corrosive applications_x000D_ Four programmable relays for switch, pump or valve control and fail-safety_x000D_ 1 pump or valve with 3 alarms_x000D_ 2 pumps (lead-lag) with 2 alarms_x000D_ 2 pumps (duplexing) with 2 alarms_x000D_ 4 independent switch point alarms_x000D_ Process mount is NPT_x000D_ Cable length of 1.2m_x000D_ Maximum current of 20mA_x000D_ USB adapter_x000D_ Applications_x000D_ Tanks_x000D_ Skids_x000D_ IBC_x000D_ Sumps and process tank level applications_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007
