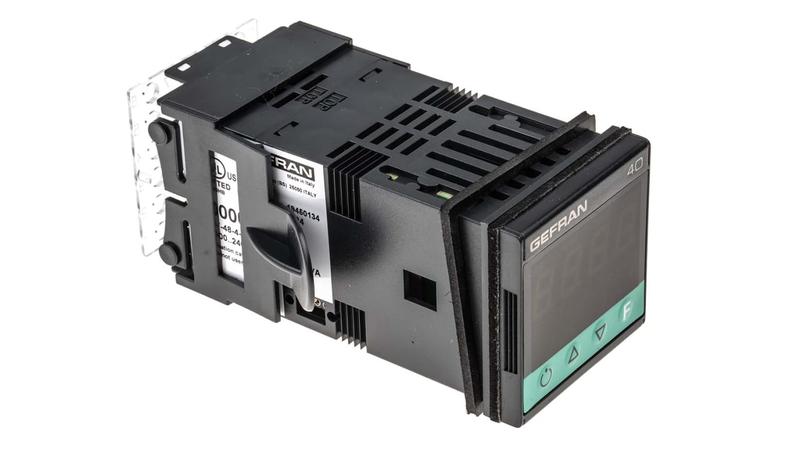

40T-48-4-00-RR-0-0-0-1 Gefran 40T48 Temperature Indicator, 48 x 48mm, 2 Output Relay, 100 V ac, 240 V ac Supply Voltage

Gefran Temperature indicator_x000D_ The Gefran 40T48 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm(1/16 DIN). It has two output relays. The input signal can be selected from a wide range of sensors. The selection is made using the faceplate keys and correct input terminals. It does not require any external shunt or adapter. The options include a TRIAC output that can directly drive resistive loads up to a maximum of 1A at 240V._x000D_ Features and Benefits_x000D_ Configurable by a serial link_x000D_ Custom thermocouple linearization available_x000D_ Faceplate configurable input_x000D_ Labels for the most frequent physical measurement units_x000D_ Linear input displays when levels fall above/below permitted measuring range_x000D_ Protected by a personal code_x000D_ RS485 optically isolated serial line protocol : GEFRAN CENCAL or MODBUS RTU_x000D_ Sampling time and trip intervention programmable between 15 and 120 milliseconds with resolution between 4000 and 16000 steps_x000D_ Sensor-break and short-circuit detection_x000D_ Transmitter power supply incorporated_x000D_ Universal process display units with configurable input for linear signals, thermocouples, Pt100 and thermistors_x000D_ Applications_x000D_ Air conditioning_x000D_ Food processing equipment_x000D_ Humidity switches_x000D_ Industrial refrigerators_x000D_ Mould cooling units_x000D_ Thermostats_x000D_ Certifications_x000D_ CE certified_x000D_ IP65 rated
