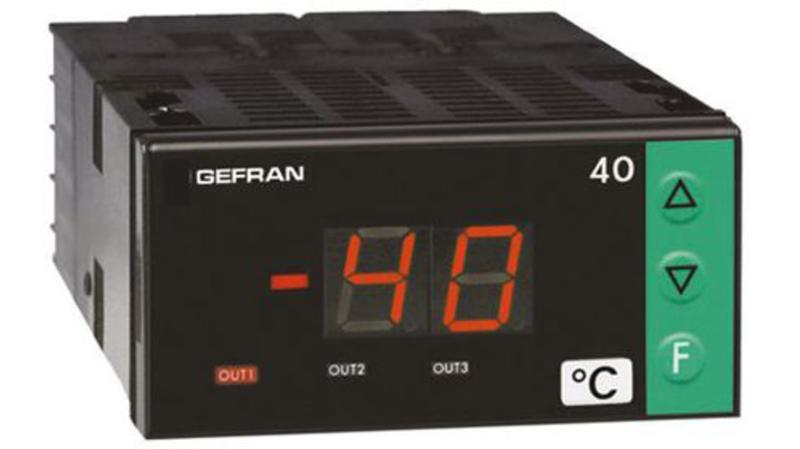

40T-72-4-01-RR-00-9 Gefran 40T72 On/Off Temperature Controller, 72 x 36mm, 2 Output Relay, 11 → 27 V dc, 18 → 27 V ac Supply

Gefran 40T Indicator_x000D_ Gefran 40T microprocessor based indicator offers configuration via the faceplate. This also supports a frontal Lexan© membrane faceplate which offers IP65 protection. This series benefits from accepting a comprehensive range of sensor inputs. A digital input (24Vdc / 4mA) is available for flash, peak handling, resetting or releasing latch._x000D_ This device also does not required an external shunt or adaptor. Gefran 40T also makes use of a simplified "function block grouping" system which allows for ease of programming, there is also a dedicated Windows programming kit which utilizes a menu-driven program to make programming even easier_x000D_ 72 x 36 format manufactured with SMT_x000D_ Integral transmitter power supply_x000D_ Password protected configuration parameters_x000D_ Internal linearisation for engineering units_x000D_ 3 configurable trips points, which can be configured via the faceplate_x000D_ Custom thermocouple linearisation available_x000D_ Serial link configuration supported_x000D_ Supports relay & logic outputs_x000D_ Main applications include:_x000D_ Food processing_x000D_ Mould cooling & air conditioning_x000D_ Industrial refrigeration_x000D_ Humidity switching_x000D_ Thermostat_x000D_ Gefran Series 400, 600, 650, 1000, 1200 & 1250
