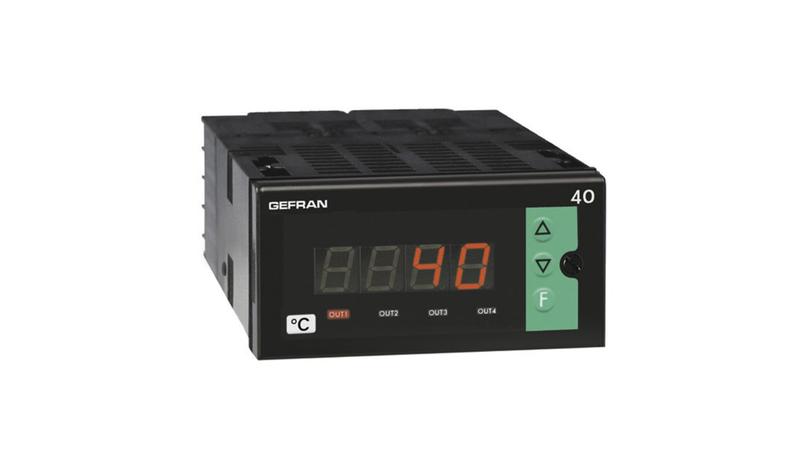

40T96-4-00-RR00-001 (EX 40T96-4-00-RR001 Gefran 40T96 Temperature Indicator, 108 x 48mm Relay, 100 240 V ac Supply Voltage

Gefran Temperature Indicator_x000D_ The Gefran 40T96 series temperature controller has a supply voltage rating ranging from 100VAC/DC to 240VAC/DC. This latest invention controller has a width of 48mm and a height of 108mm(1/18 DIN). The input signal can be selected from a wide range of sensors. The selection is made using the faceplate keys. The instrument is available in version base with 2 outputs to relay (2R) along with an expandable version._x000D_ Features and Benefits_x000D_ 2 configurable alarm outputs and a normally open contact (N/O)_x000D_ Identification of temperature probe cut-out or short circuit_x000D_ Indication of over or under-scale measurement for linear inputs_x000D_ Indication of the size measured by an adhesive label on the front face (for most common physical units)_x000D_ The model with 4mA to 20 mA sensor power supply and recopy features a 3rd output relay_x000D_ Universal process indicators that are fully configurable with linear input signal range, thermoresistance, thermocouple, or thermistor_x000D_ Configurable by a serial link_x000D_ Custom thermocouple linearization available_x000D_ Faceplate configurable input_x000D_ Labels for the most frequent physical measurement units_x000D_ Linear input displays when levels fall above/below permitted measuring range_x000D_ Protected by a personal code_x000D_ RS485 optically isolated serial line protocol : GEFRAN CENCAL or MODBUS RTU_x000D_ Sampling time and trip intervention programmable between 15 and 120 milliseconds with resolution between 4000 and 16000 steps_x000D_ Sensor-break and short-circuit detection_x000D_ Transmitter power supply incorporated_x000D_ Applications_x000D_ Air conditioning_x000D_ Food processing equipment_x000D_ Humidity switches_x000D_ Industrial refrigerators_x000D_ Mould cooling units_x000D_ Thermostats_x000D_ Certifications_x000D_ CE certified_x000D_ IP65 rated
