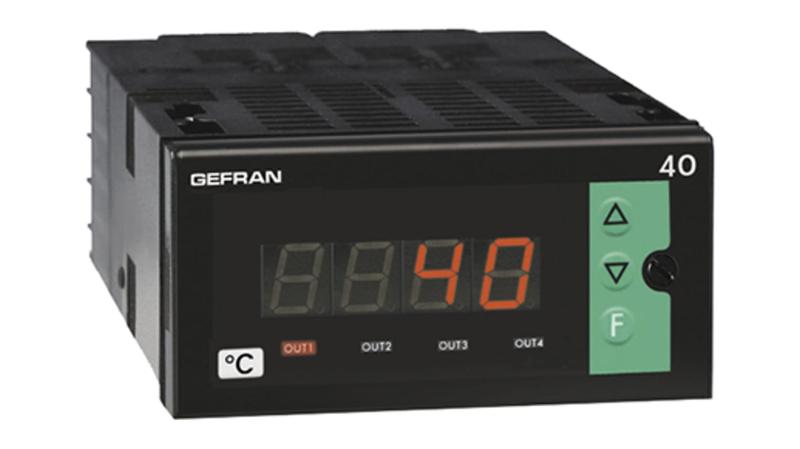

40T96-4-00-RR00-301 (EX 40T96-4-00-RR031 Gefran 40T96 On/Off Temperature Controller, 96 x 48mm, 1 Output Relay, 100 → 240 V ac/dc Supply Voltage

Gefran Process Indicator_x000D_ The Gefran 40T96 series temperature controller has a supply voltage rating ranging from 100VAC/DC to 240VAC/DC. This latest invention controller has a width of 48mm and a height of 96mm. This process indicator has universal input and two relay outputs. The instrument has a Lexan membrane faceplate that has 3 keys, a 3/4 digit display format and 4 indicating LED for the output statuses._x000D_ Features and Benefits_x000D_ 2 configurable alarm outputs and a normally open contact (N/O)_x000D_ 4mA to 20mA recopy output or with 4mA to 20 mA sensor supply and recopy_x000D_ Identification of temperature probe cut-out or short circuit_x000D_ Indication of over or under-scale measurement for linear inputs_x000D_ Indication of the size measured by an adhesive label on the front face (for most common physical units)_x000D_ The model with 4mA to 20 mA sensor power supply and recopy features a 3rd output relay_x000D_ Universal process indicator that is fully configurable with linear input signal range, thermoresistance, thermocouple, or thermistor_x000D_ Applications_x000D_ Air conditioning_x000D_ Food processing equipment_x000D_ Humidity switches_x000D_ Industrial refrigerators_x000D_ Mould cooling units_x000D_ Thermostats_x000D_ Certifications_x000D_ CE certified_x000D_ IP65 rated_x000D_ UL approved
