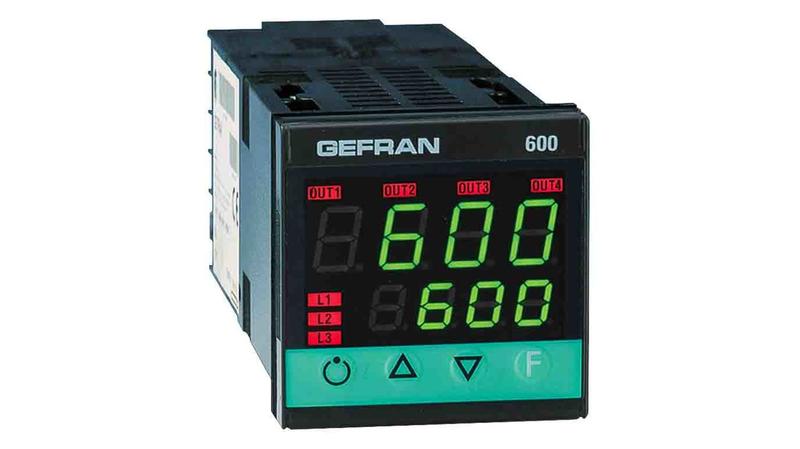

600-R-D-H-R-1 Gefran 600 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 2 Output Logic, Relay, 100 → 240 V ac Supply Voltage

Gefran 600 Series_x000D_ Gefran 600 series of Microprocessor Controllers support thermocouple configuration via the complete operator faceplate. This series of Microprocessor Controllers are equipped with a Lexan© membrane faceplate to provide a frontal IP65 rating. Function block formatting allows for simplified programming. Auto-Detection of hardware configuration adds the benefit of automatically hiding irrelevant parameters leaving you to focus on setting the alarm & setpoint._x000D_ 48x48 (1/16 DIN) panel cutout supported_x000D_ Microprocessor Controller faceplate supports an IP65 rating_x000D_ Up to 4 outputs supporting relay (5A at 250Vac / 30Vdc)_x000D_ Accuracy better than 0.2% F.S under nomimal conditions_x000D_ Supports Self-tuning, auto-tuning, soft-start & bumpless man/auto function_x000D_ Optically isolated RS485 serial line supporting Cencal or MODBUS RTU protocol_x000D_ Auxiliary input for CT (TA) (50mAac)_x000D_ Alarm indication for probe short-circuit or heater break_x000D_ Analogue retransmission output_x000D_ Hot / cold function with cooling fluid selection_x000D_ Main applications include:_x000D_ Ovens_x000D_ Extrusion lines_x000D_ Packing & packaging machines_x000D_ Cooling plants_x000D_ Polymerization & synthetic fiber plants_x000D_ Heat punches_x000D_ Gefran Series 400, 600, 650, 1000, 1200 & 1250
