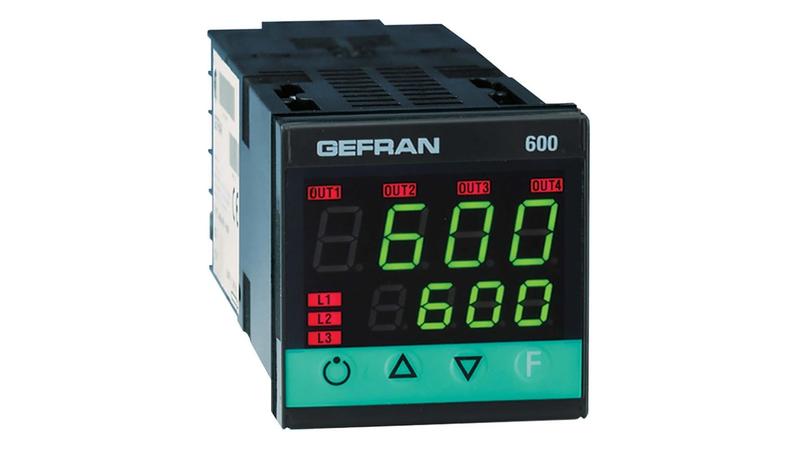

600-R-D-R-0-1 Gefran 600 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 3 Output Relay, 100 V ac, 240 V ac Supply Voltage ON/OFF

Gefran Temperature Controller_x000D_ The Gefran 600 series temperature controller has supply voltage ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm (1/16 DIN) device. It has 3 relay outputs where first and third outputs are relay whereas, the second output is Logic I/O. The main input for the process variable is universal and second auxiliary analogue input from the current transformer is also available. The instrument is supplied with an "easy" configuration with just a few parameters (only those for the model ordered and essential for controller operation). A PC programming kit is available for even simpler configuration, composed of a cable and a guided program for Windows environment._x000D_ Features and Benefits_x000D_ Accuracy better than 0.2% F.S under nominal conditions_x000D_ Alarm indication for probe short-circuit or heater break_x000D_ Auxiliary input for CT (TA) (50mAac)_x000D_ Hot/cold function with cooling fluid selection_x000D_ Double line display for setpoint and measurement._x000D_ Functions: auto-adaptive, auto-adjustable, Manual/Auto, Bumpless._x000D_ Optically isolated RS485 serial line supporting CENCAL or MODBUS RTU protocol_x000D_ Supports Self-tuning, auto-tuning, soft-start & bump less man/auto function_x000D_ Universal input configurable from faceplate_x000D_ Applications_x000D_ Climatic cells and test benches_x000D_ Cooling plants_x000D_ Die-casting plants_x000D_ Dryers for ceramics and construction parts_x000D_ Extrusion lines_x000D_ Food processing pants_x000D_ Heat punches_x000D_ Injection presses for plastics_x000D_ Ovens_x000D_ Packaging machines_x000D_ Packing machines_x000D_ Painting plants_x000D_ Polymerization and synthetic fibre plants_x000D_ Presses for rubber_x000D_ Certifications_x000D_ CE certified_x000D_ EN 61000-6-2_x000D_ EN 61000-6-3_x000D_ EN 61010-1_x000D_ IP65 rated_x000D_ UL approved
